ROCKMAN© PEDAL DESIGN
This ROCKMAN© Pedal was commissioned as a custom Project and takes an X-100 and mounts it in a Pedal enclosure with control switches for EDGE, DISTORTION and CLEAN presets and LED Indicators...

__________________________________________________________________________
Modifications

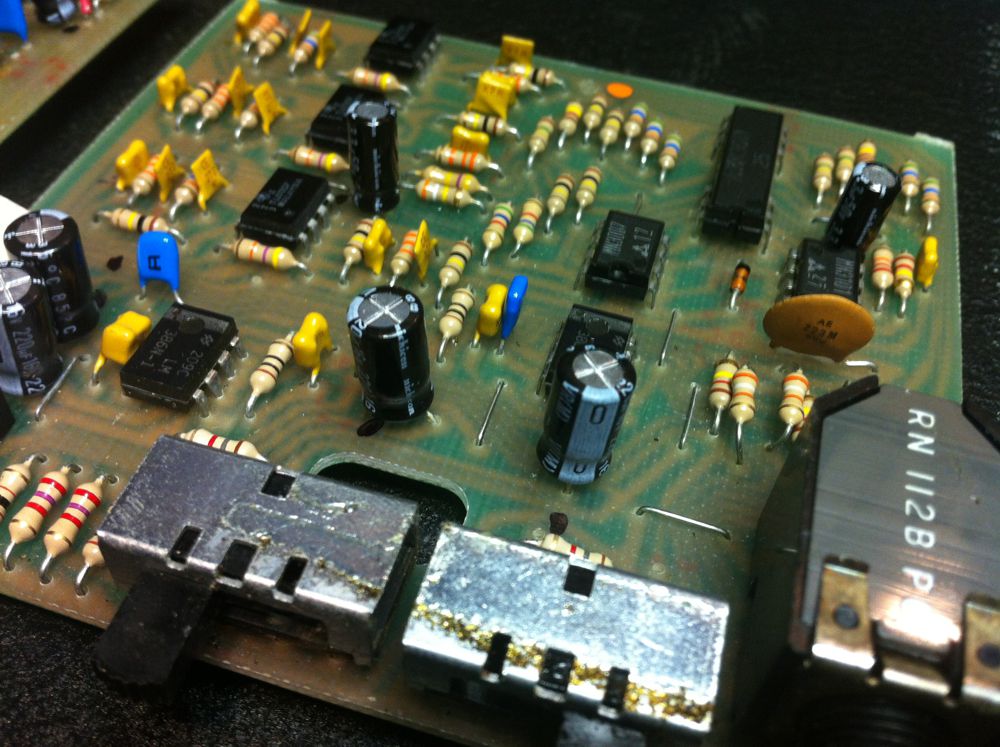

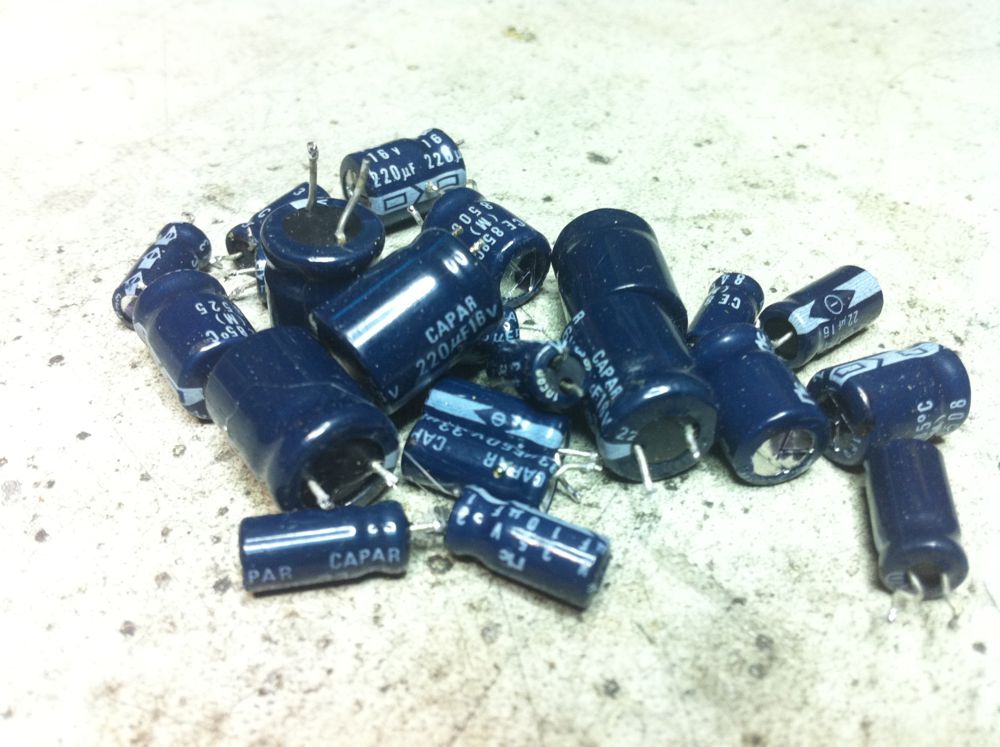

Before getting deep into modifying the X-100 and since the ROCKMAN© was over 30 years old, I needed to replace the unit's electrolytic capacitors, clean and re-lube all of the switches and connectors.


The unit was fully tested before disassembly and re-mounting in the pedal case..
__________________________________________________________________________
STAGECUE/ROCKMAN© X-100 CUSTOM IMPLEMENTATION

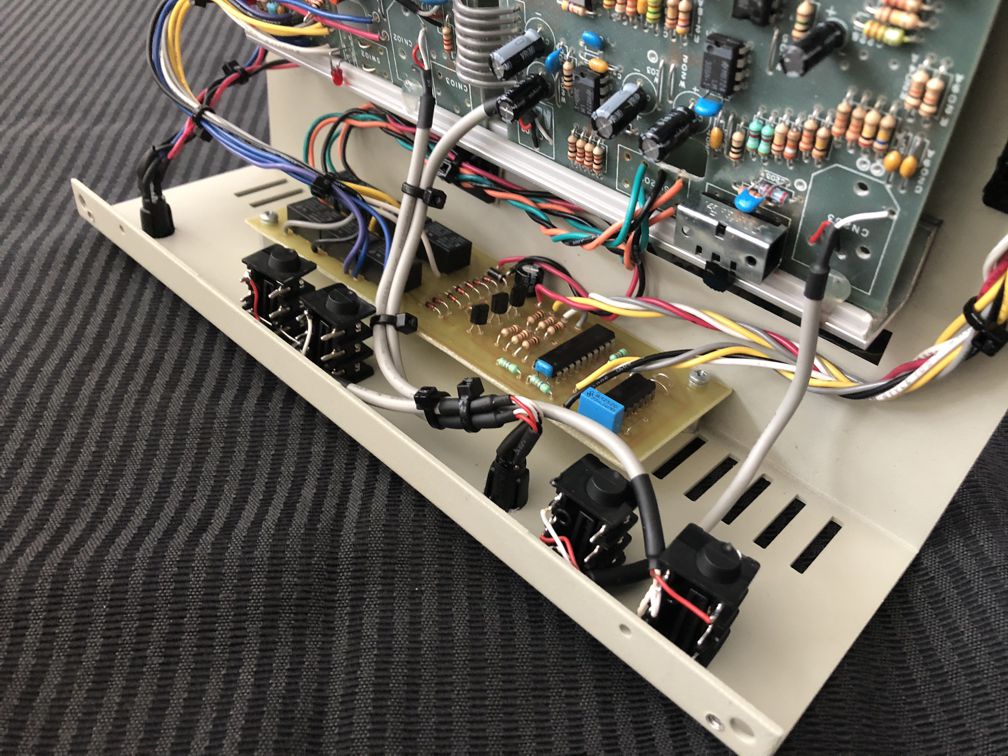

The Rockman circuit boards are controlled by a custom control circuit board that exclusively switches one-of-three presets. |

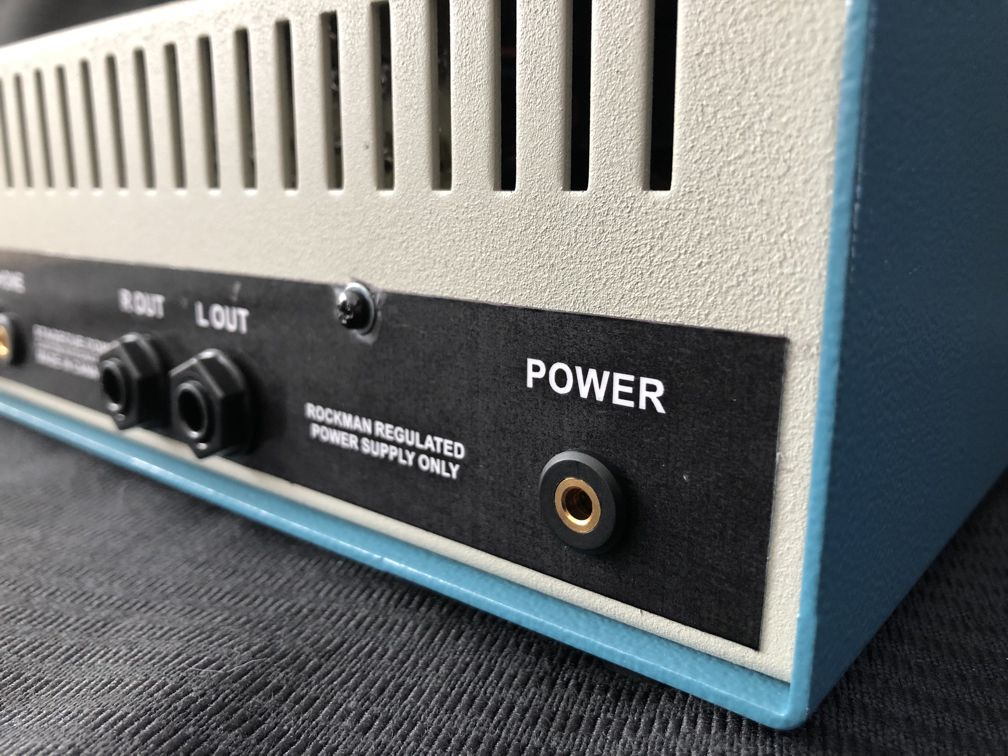

The Pedal is powered from the Rockman Regulated power supply which supplies +6V and -6 VDC.

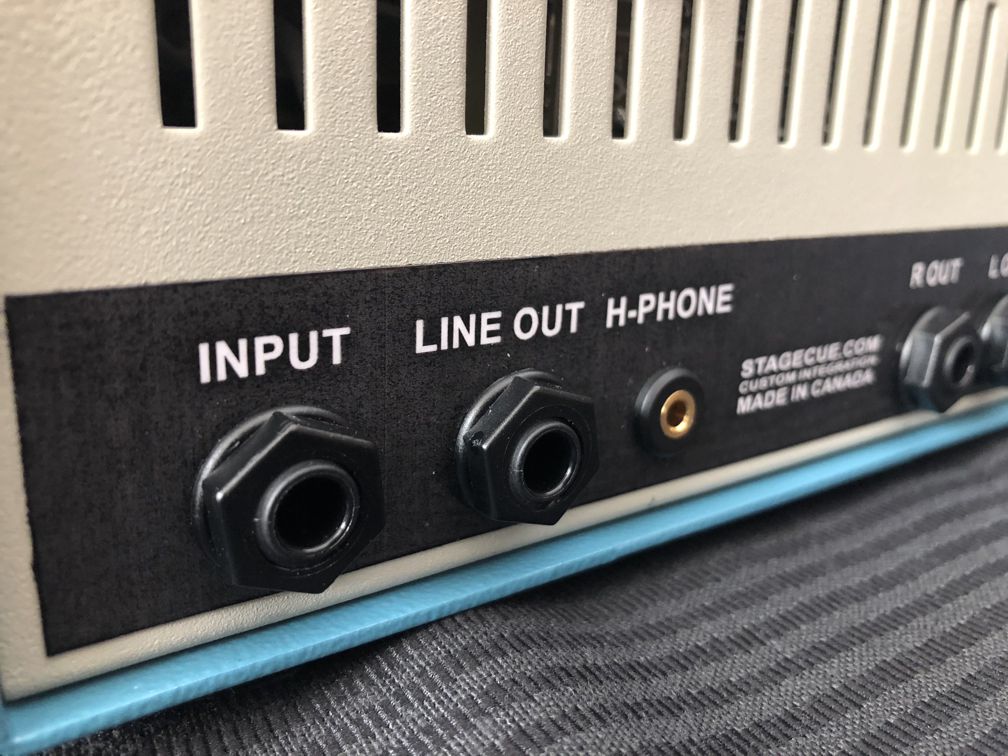

The Pedal Has Headphone and Aux OUT Jacks

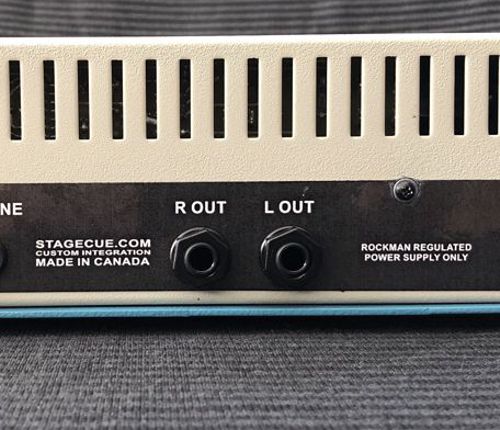

Right & Left LINE Outputs

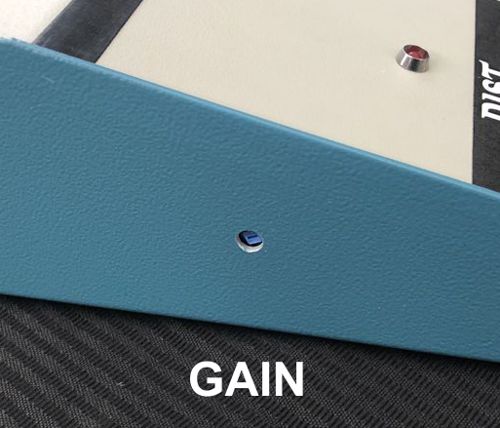

The GAIN control is accessible from the side

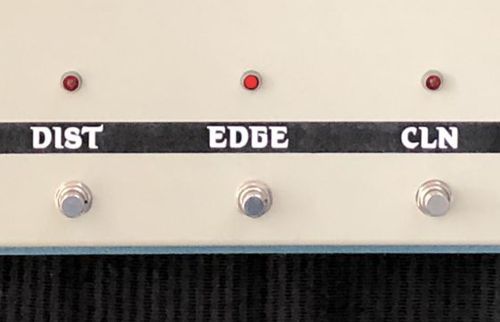

Bright RED Channel Indicators and Momentary Footswitches.
