DIGITECHTM WHAMMY DT - CUSTOM RACK [JOB #2]



Here are some PIX of the work to complete the integration of a floor-based Whammy DT...

whammy



into a rack-mount solution...

fpanel

allowing the following...



The audio stays in the rack and the Whammy is controlled via MIDI CC

input

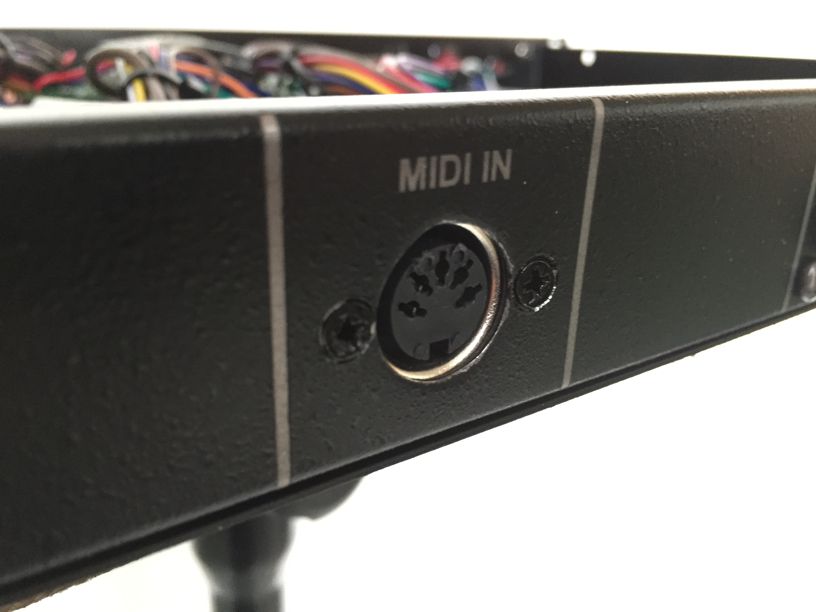

All of the Whammy DT functions can be switched on/ off over MIDI via a rear-panel MIDI IN jack

midi



The rack-mount chassis has a standard IEC power inlet

iec

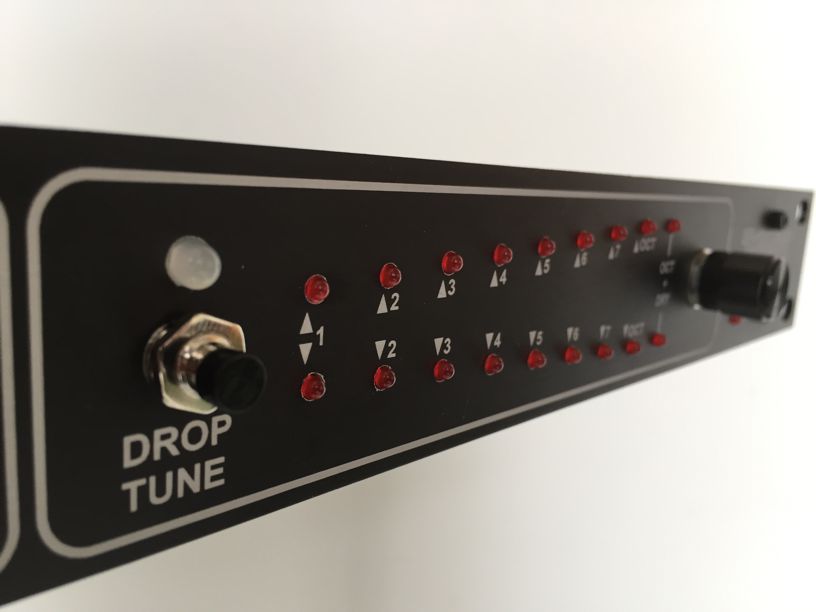

The rack-mount chassis front panel has 40 LED's to allow visual indication of the preset.

leds

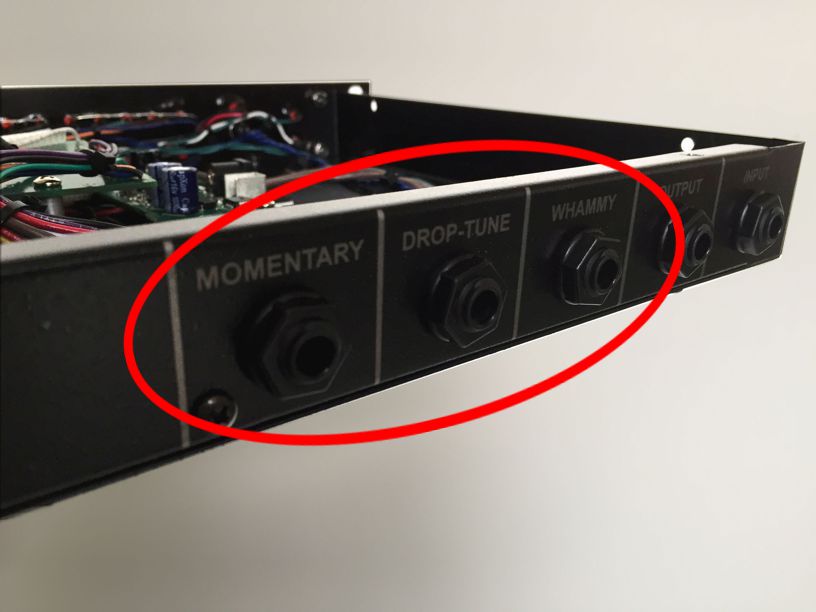

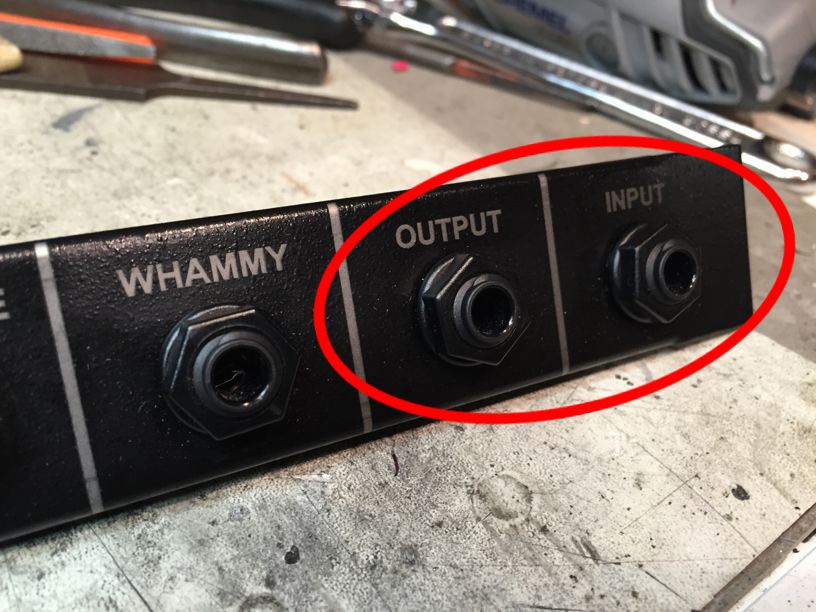

The rear panel has 1/4" jacks to allow remote control of whammy on/off, drop-tune on/off and momentary drop-tune functions using a MIDI amp control switcher or individual momentary foot-switches.

jacks

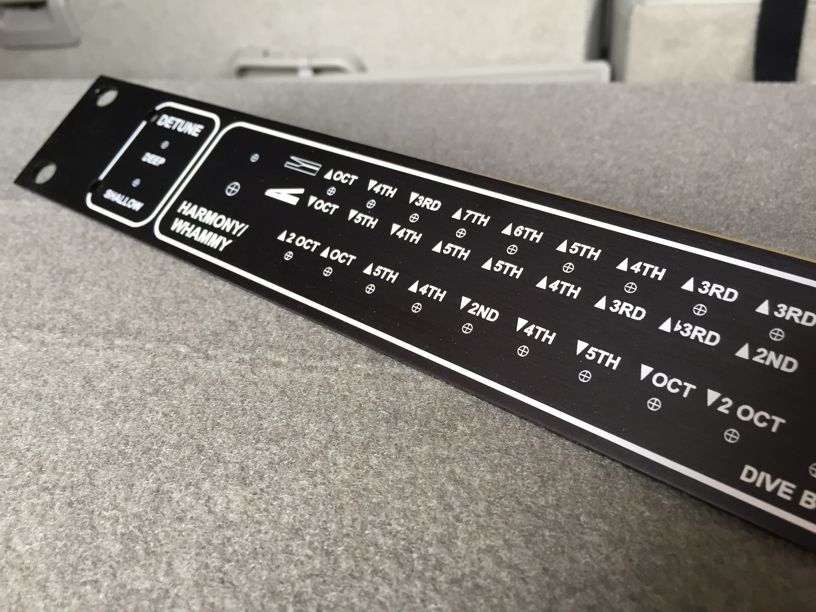

The front and rear panels were designed in house and laser engraved, drilled manually and stuffed with all of the LED's encoders and 1/4" jacks.

panel
