ROCKMAN© X-100 CUSTOM RACK





__________________________________________________________________________

Scholz ROCKMAN© History

The Scholz ROCKMAN© is an 80's Headphone Amplifier that allowed guitarists to rock at all hours of the day/ night in the comfort of their own head!... It went through many iterations...

ROCKMAN© MODEL I - CIRCA 1982

ROCKMAN© MODEL II - CIRCA 1983



The mod outlined here is based on the ROCKMAN© MODEL X-100 - CIRCA 1984

top

side

The following preamp modes were possible...

DISTORTION

EDGE

CLEAN 1

CLEAN 2

The user could add the following Effects to the above preamp modes...

Chorus separately

Echo separately

Echo and Chorus together



The user could not turn off both the Chorus and Echo to get the dry Preamp sound alone... So I purchased an X-100 to try and modify the unit for infinite tweakability!



__________________________________________________________________________

The ROCKMAN© sound had been used in countless studio recordings soon after its inception... there were companies that tried to help musicians incorporate their ROCKMAN© into live performance by providing footswitch control of the ROCKMAN© functions.

The most ambitious product, although short-lived, was the ROCK BOX© developed by a third party company...



r-box

This solution required you to send your ROCKMAN© to the manufacturer for a major modification after which had the ROCKMAN© residing inside of the ROCK BOX© Foot-Controller.

The ROCK BOX© allowed Switching of the preamp functions and also allowed the independant switching of the Chorus and Echo.



__________________________________________________________________________

Modifications

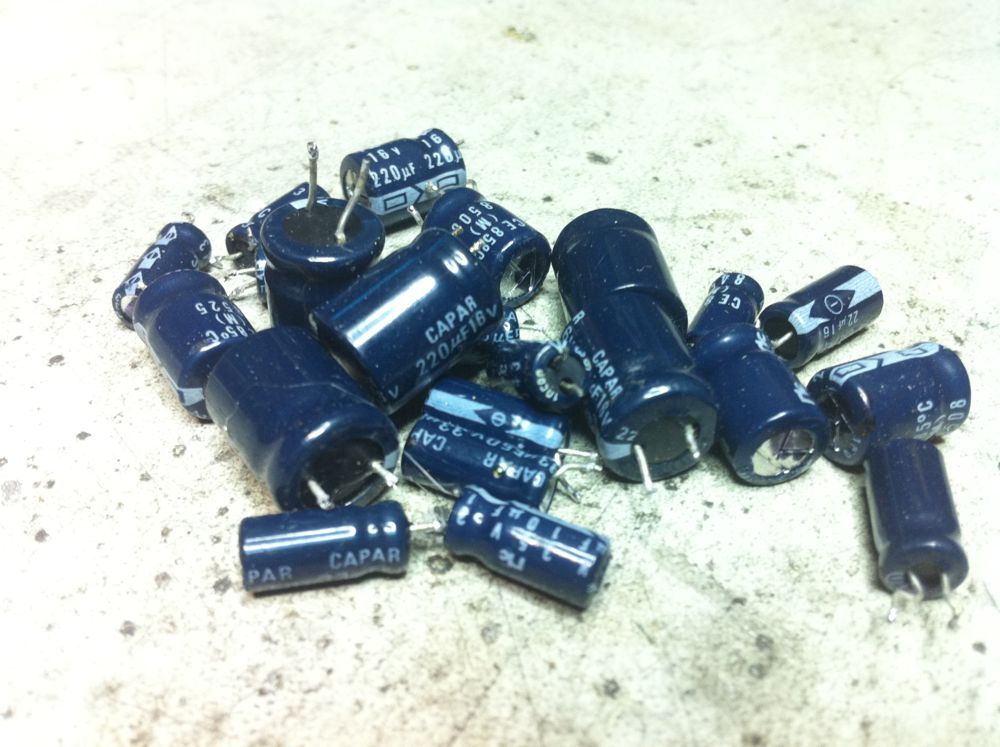

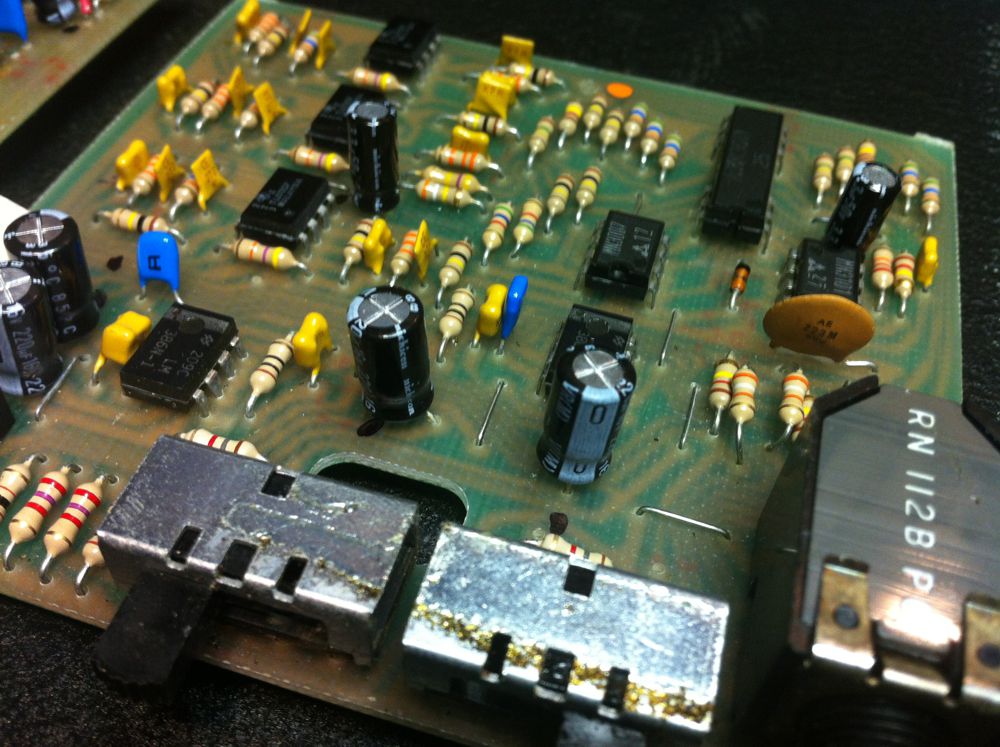

Before getting deep into modifying the X-100 and "rack-i-fying" it, since the ROCKMAN© was over 30 years old, I needed to replace the unit's electrolytic capacitors, clean and re-lube all of the switches and connectors and re-touch any 'iffy' solder joints.

caps

caps2



Once I was happy with the sound quality and reliability I started to disassemble the X-100 to begin the modification





__________________________________________________________________________

STAGECUE/ROCKMAN© X-100 CUSTOM IMPLEMENTATION

The Custom X-100 Rack incorporates all of the following features...

19 " Rackmount Chassis

panel

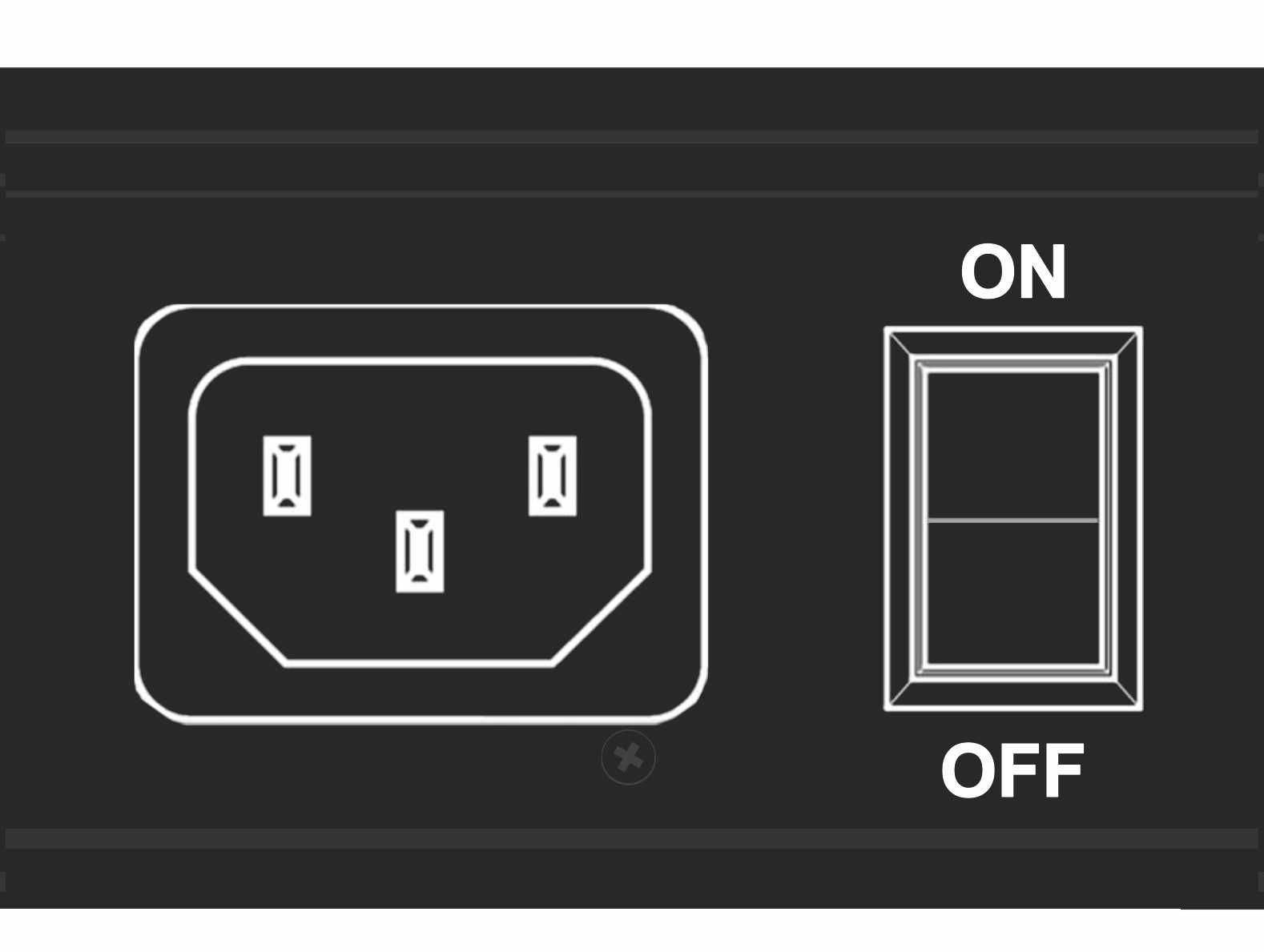

Integrated Regulated DC power supply with Standard 110 VAC Power Inlet

& Power ON/OFF Switch

outlet

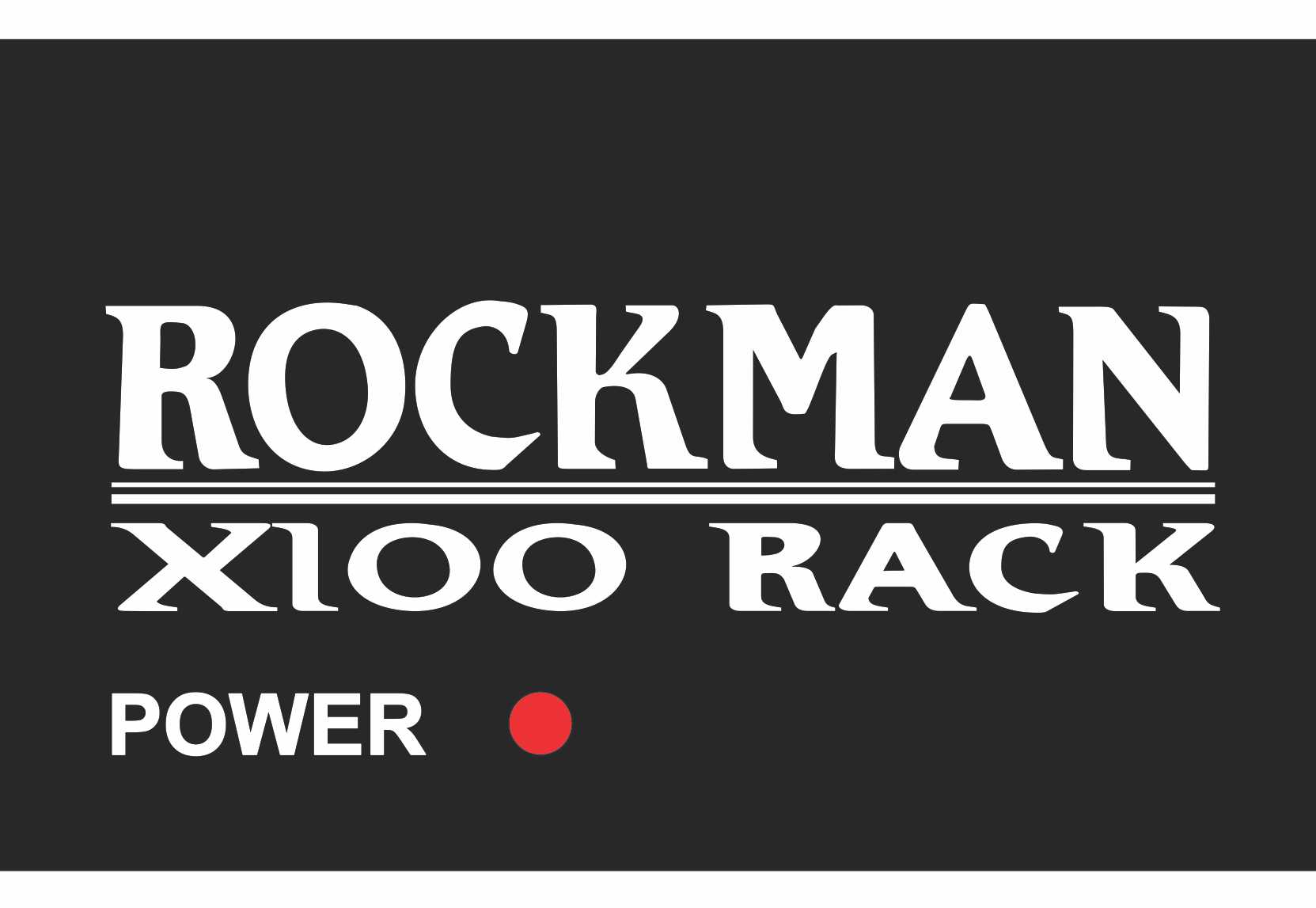

Power LED Indicator

led

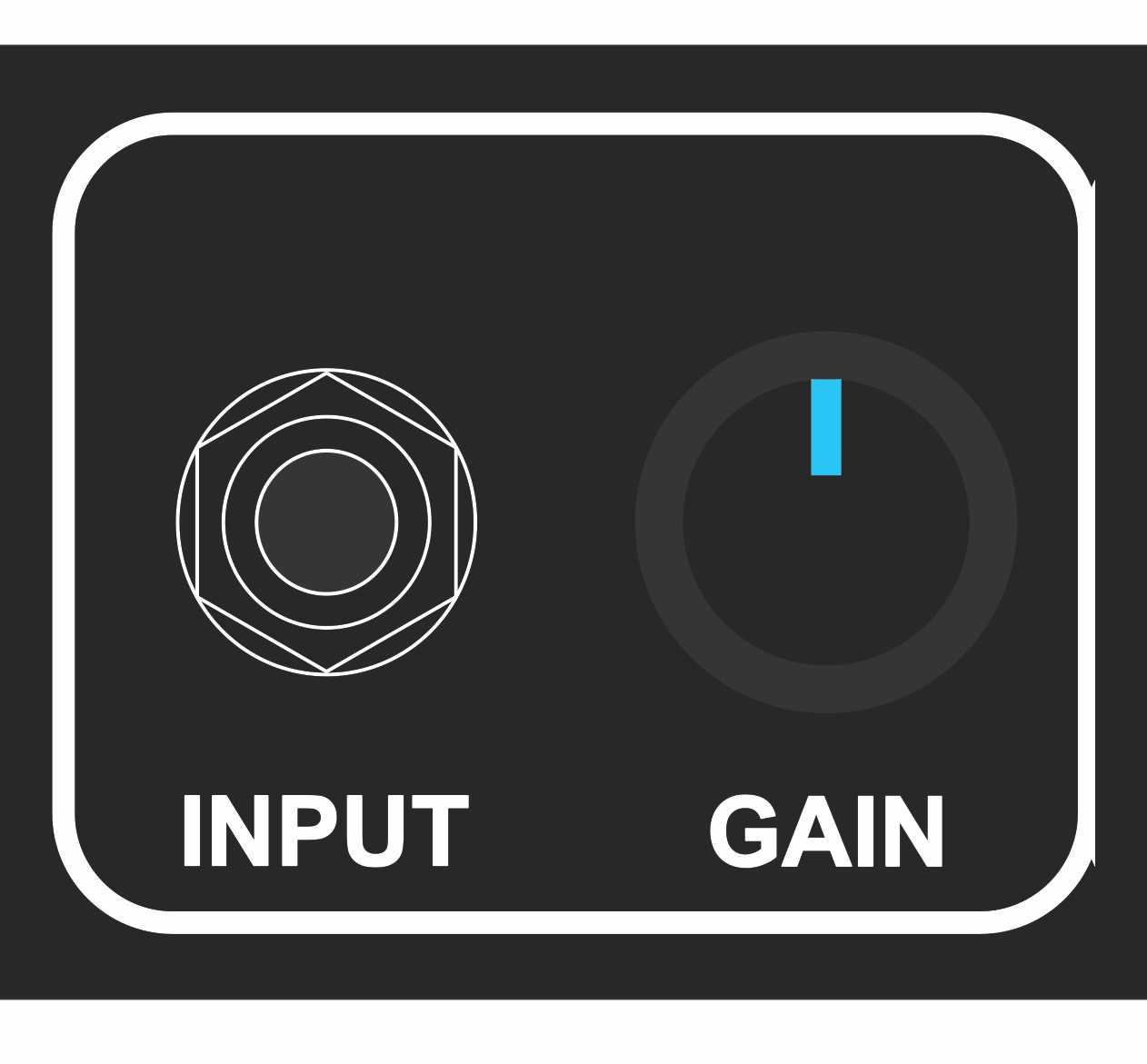

Front and Rear Guitar INPUT

& Input GAIN Control

ip



Push-button switches to select 1 of 4 Preamp modes

& Compressor THRESHOLD control for CLN 1 and CLN 2 Preamp modes

presets

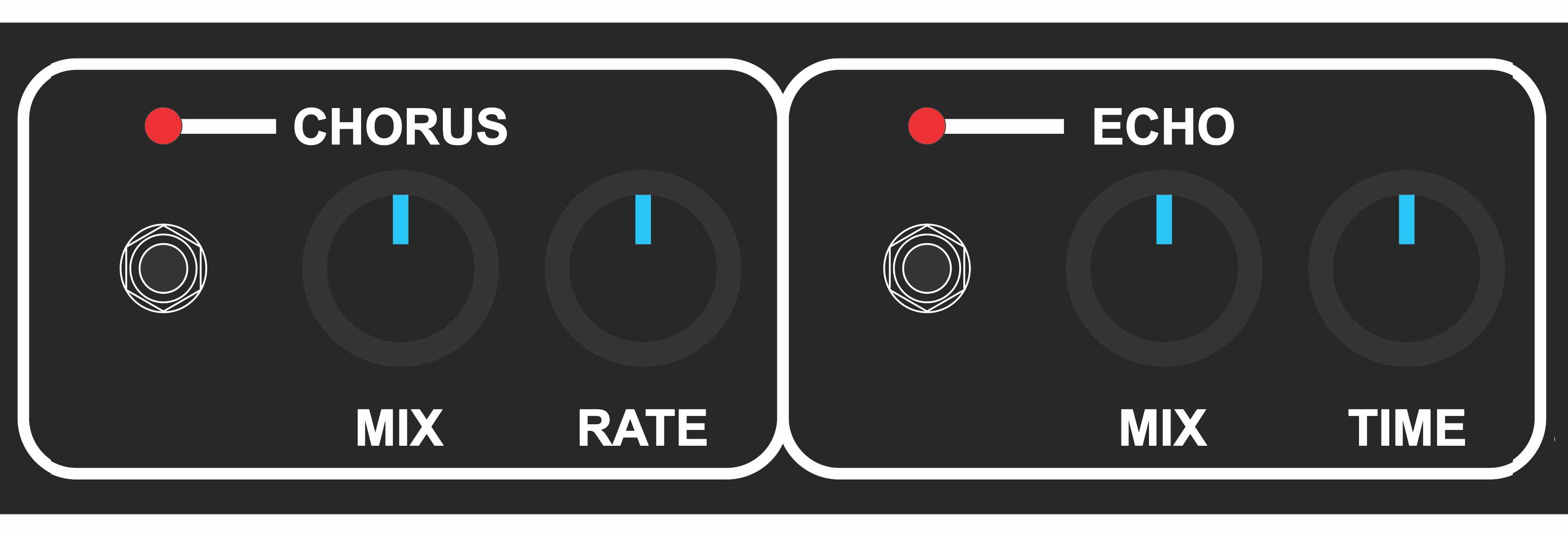

Push-button switches to select Echo and Chorus On/Off independantly,

Chorus MIX & RATE Controls

& Echo MIX and TIME Controls

fx



Push-button switch to select a preset MIN. Level

& Output LEVEL control

boost

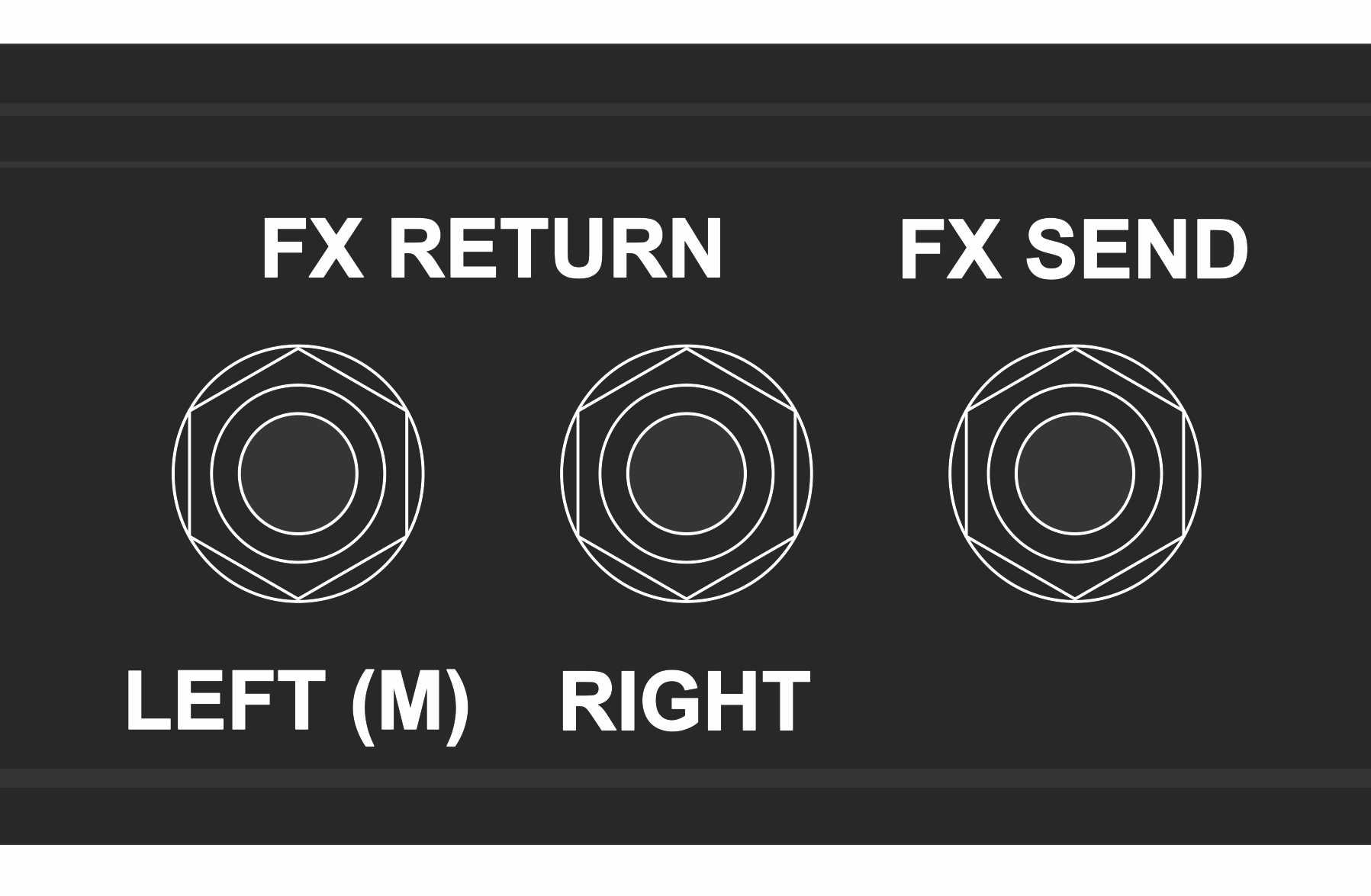

Rear Panel FX LOOP SEND Jack and Stereo RETURN Jacks

loop

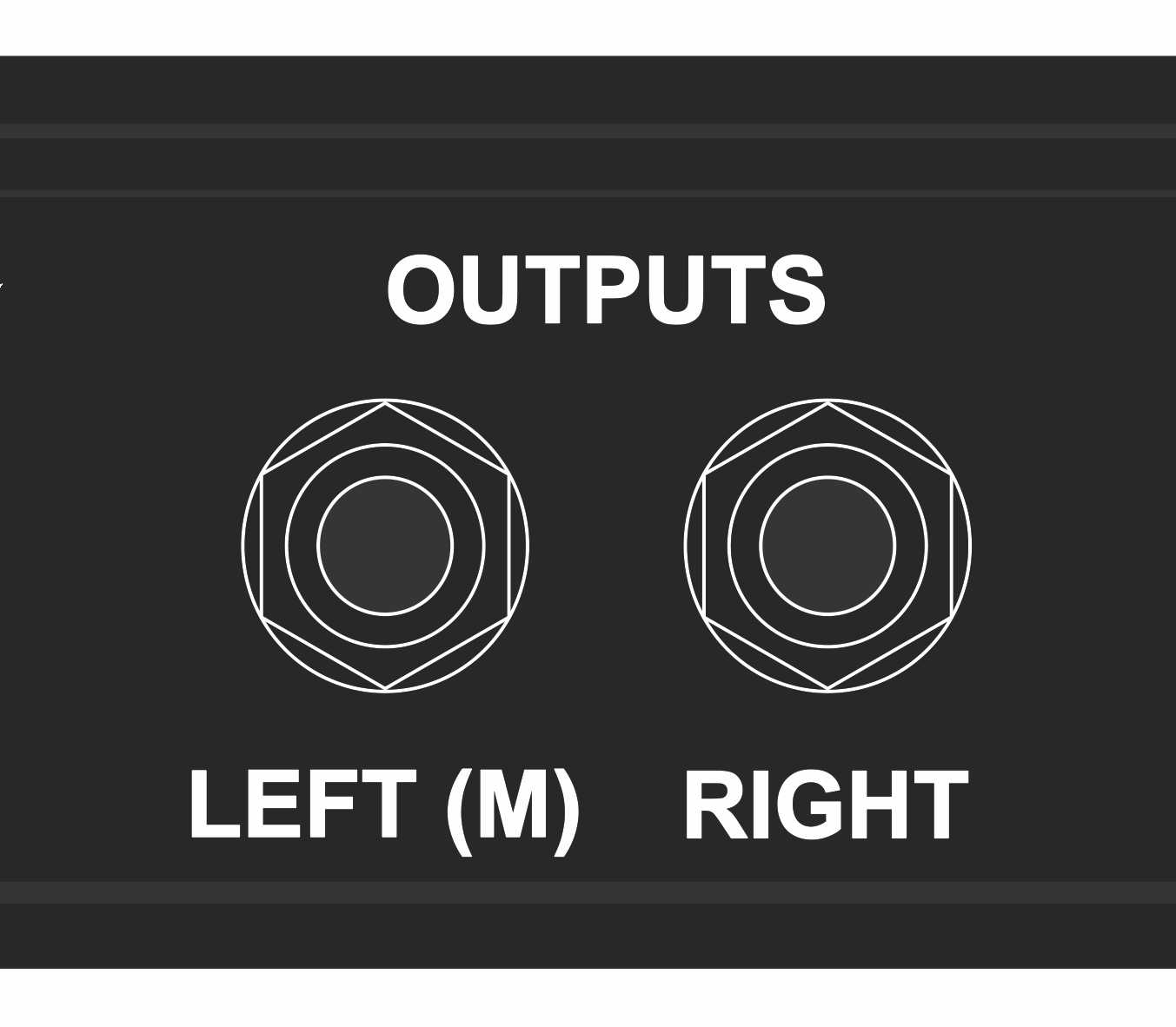

Rear Stereo LINE Outputs

outs



FOOTSWITCH IN to allow remote access of all Front Panel Functions

& MIDI IN to allow selection of all Footswith Functions over MIDI CC

midi

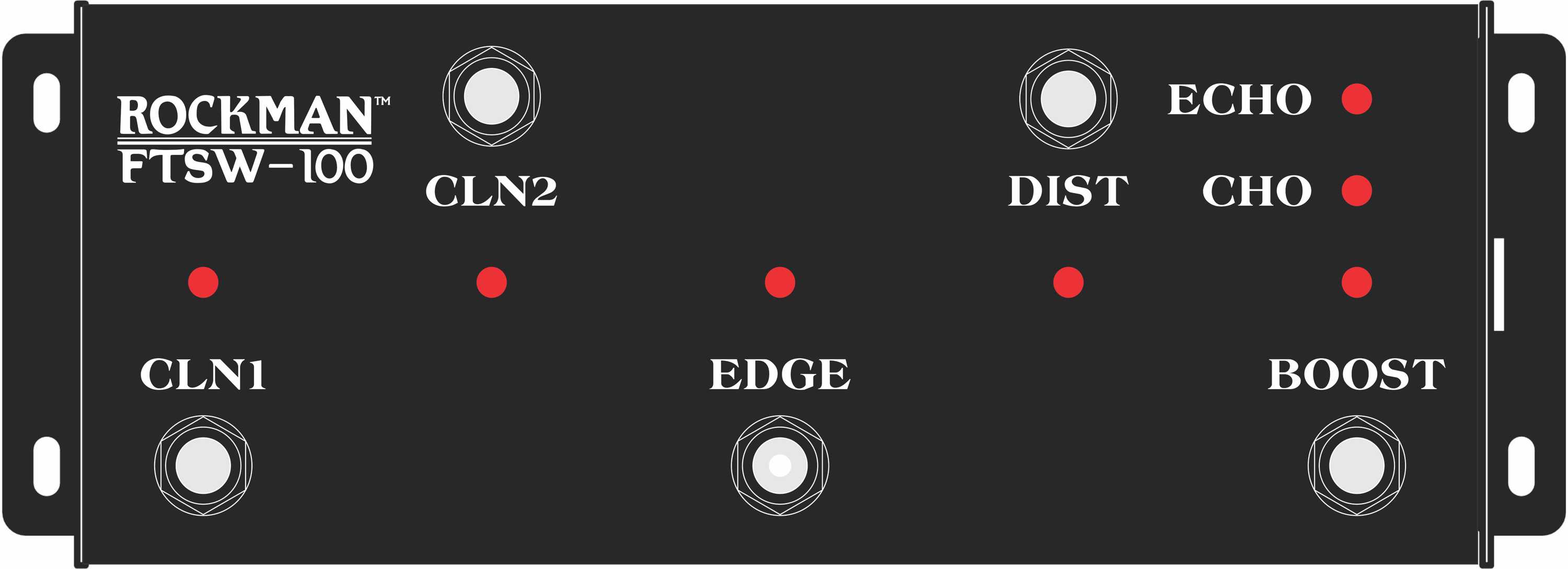

Custom 7 button Footswitch to parallel all Rack Front-Panel Switches

ftsw

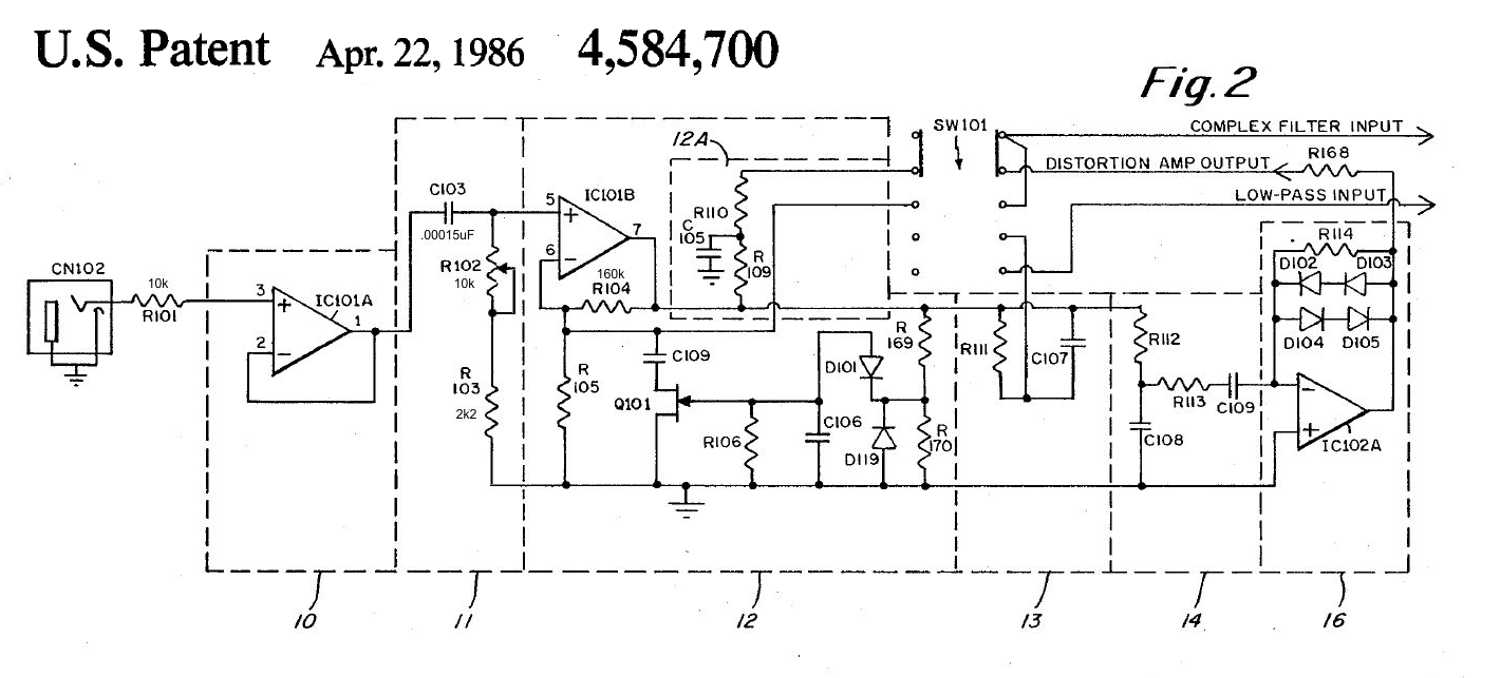

All of the above features are possible due to deep circuit analysis of the original ROCKMAN© patent schematics which were almost identical to the actual production ROCKMAN©

patent

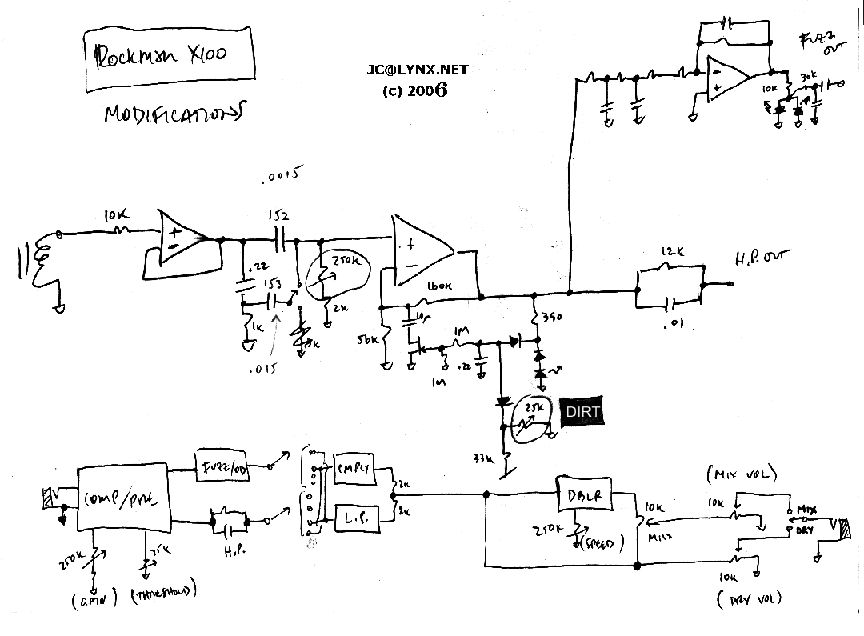

My Project was inspired by JC Maillet's below drawing...

more info here... JC Maillet Rockman Mods

lynx



I went way overboard and added many tweaks and external controls to make the unit infinitely adjustable.

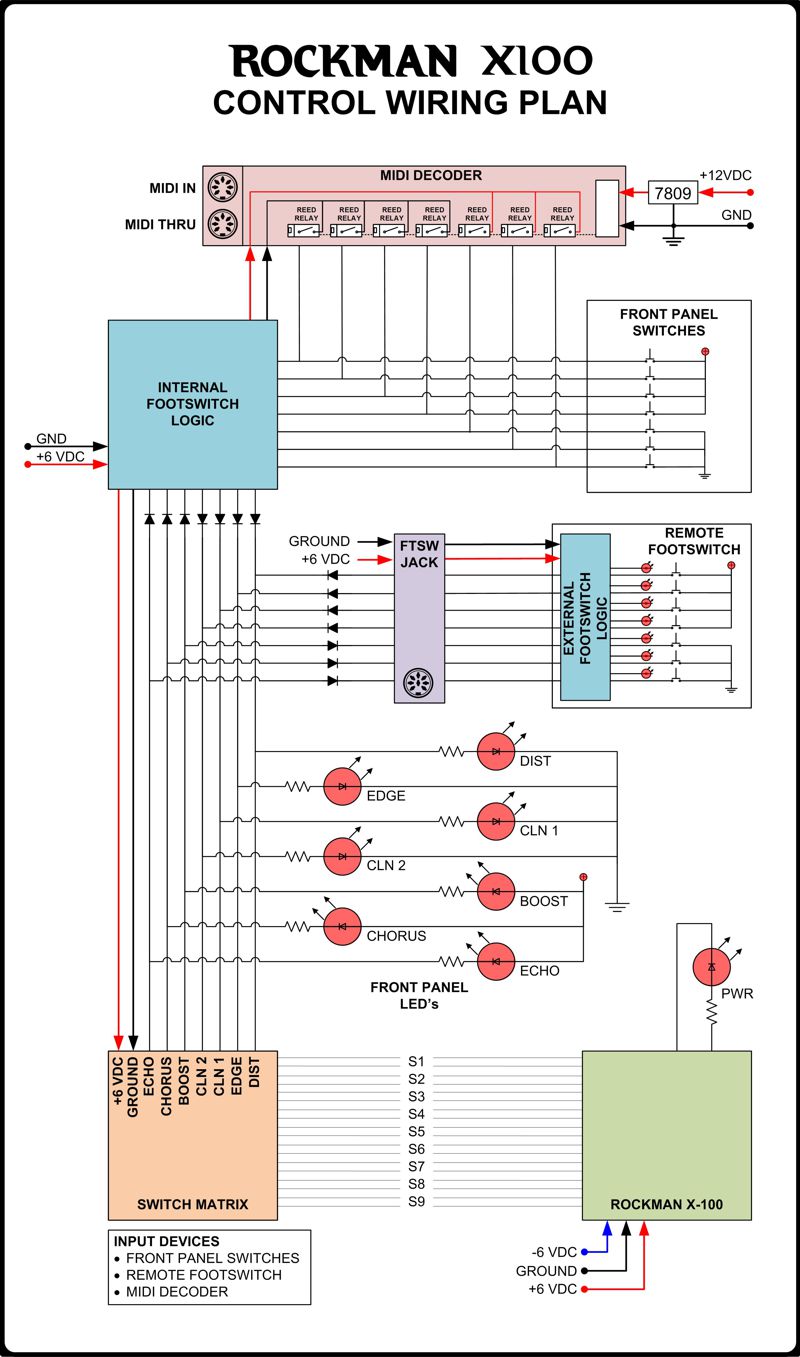

design

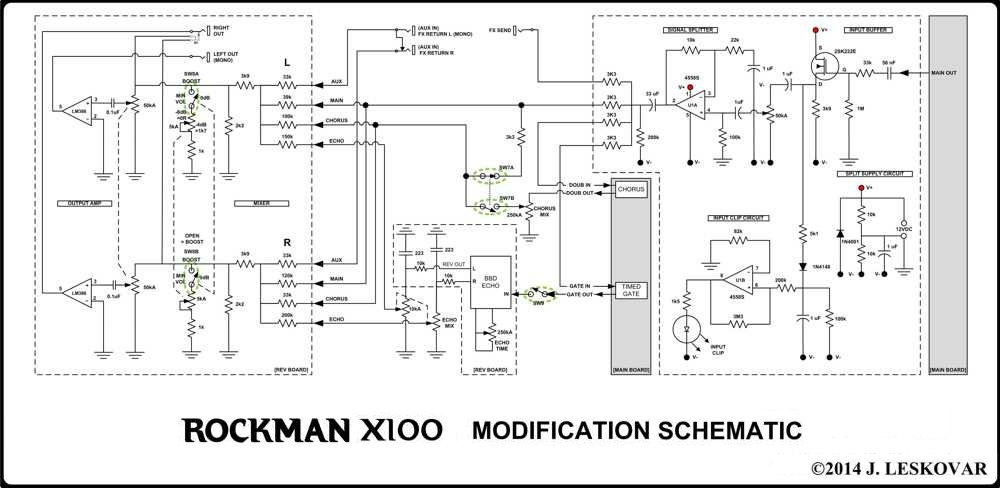

schem

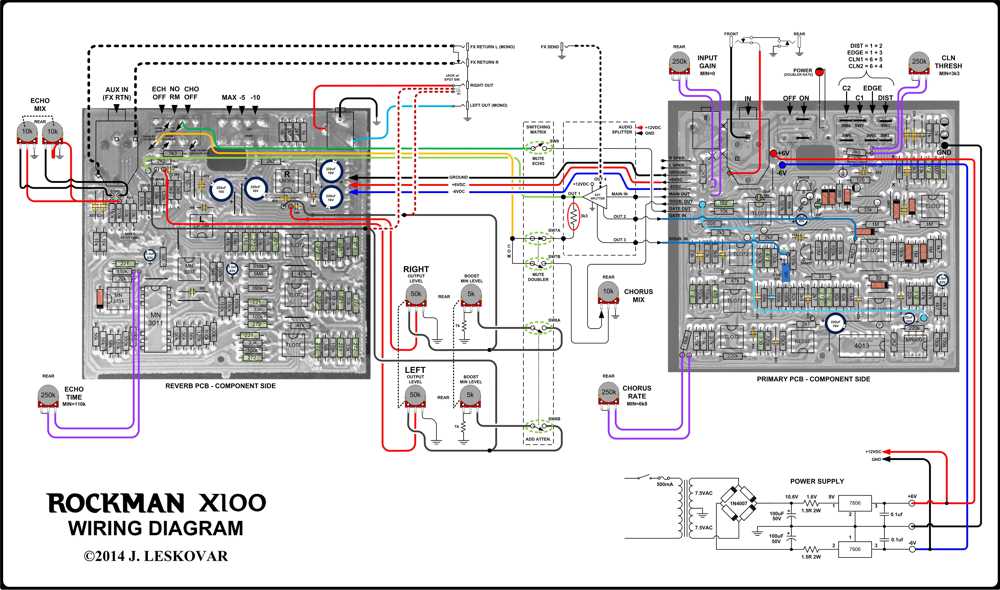

wiring

parts

All of the above drawings diagrams and pictures all rights reserved except where noted.

Please request for permission before copying.

©2014 J. LESKOVAR
