Here are some PIX of the ROCKBOX

It is full of Juicy ROCKMAN^© HEADPHONE AMPS



The ROCKBOX has four Classic ROCKMAN^© installed...

ROCKMAN^© MODEL I - CIRCA 1982

ROCKMAN^© MODEL II - CIRCA 1983

ROCKMAN^© MODEL X-100 - CIRCA 1984

ROCKMAN^© MODEL BASS - CIRCA 1984





__________________________________________________________________________

RESTORATIVE SERVICE

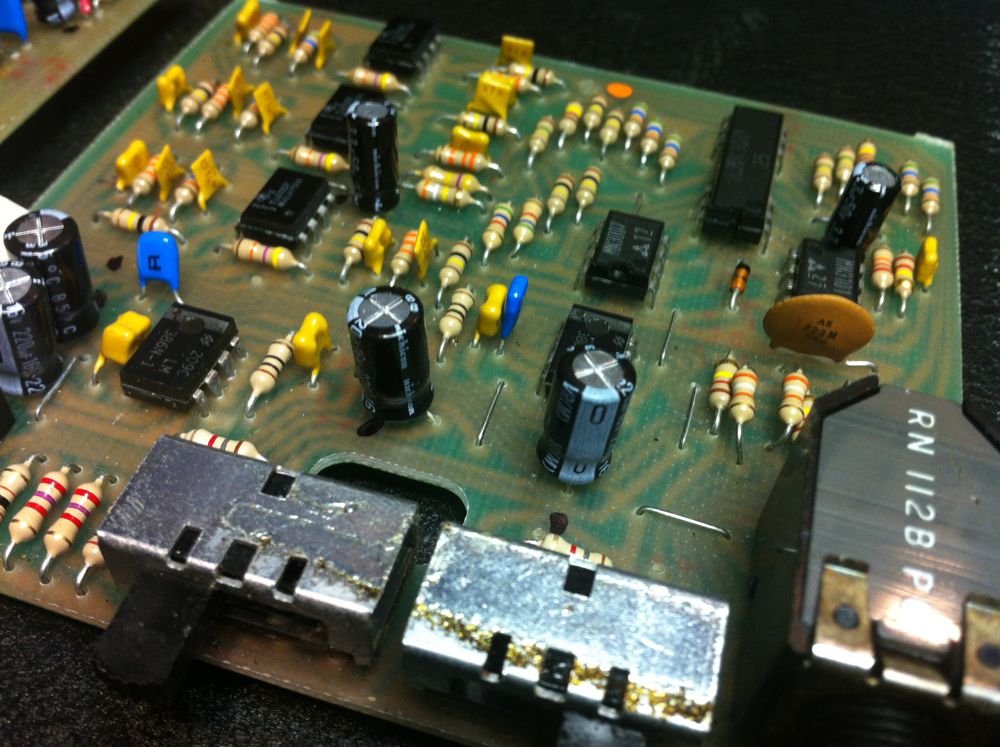

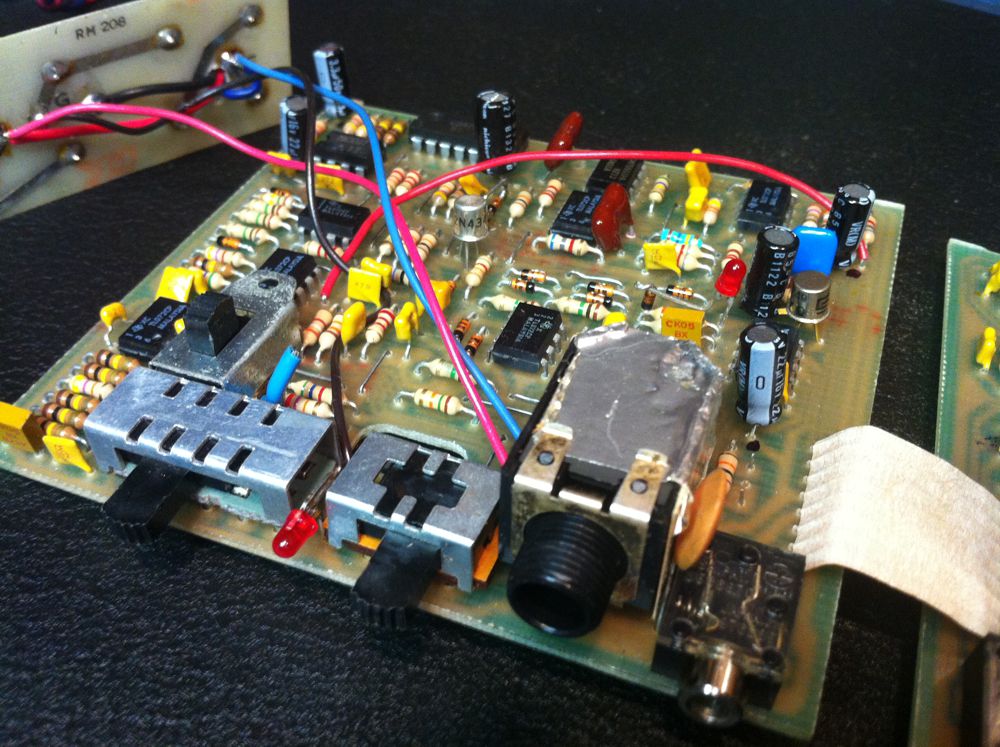

Since all of the ROCKMAN^© were all over 30 years old, they were all serviced by replacing all of the

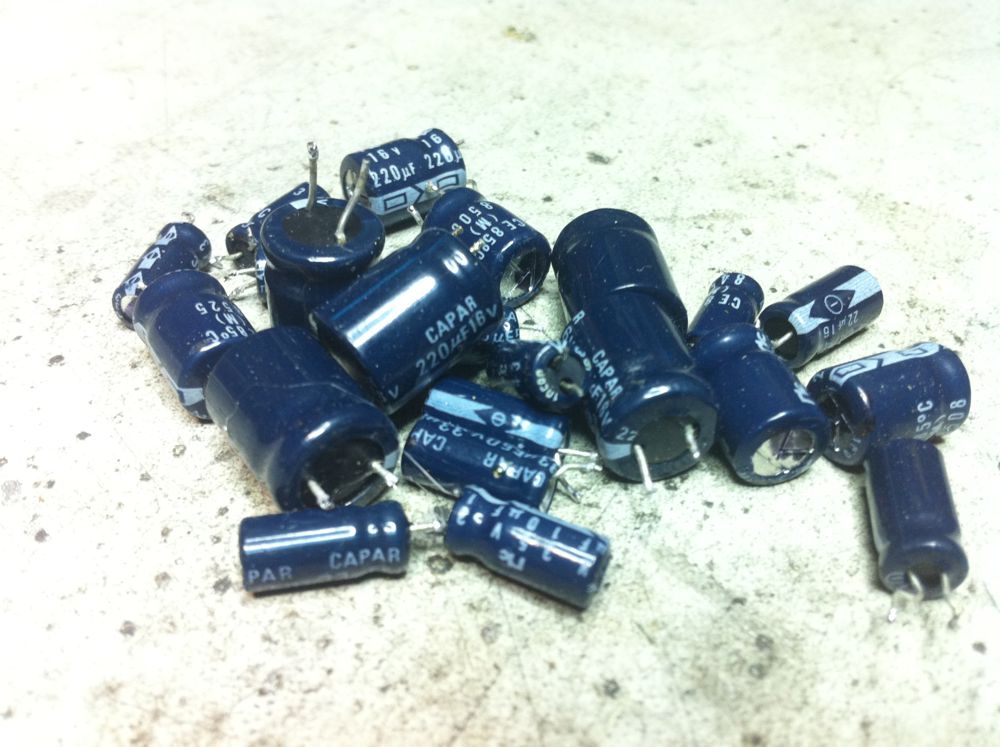

electrolytic capacitors, cleaning and re-lubricating all of the switches and connectors and

re-touching any 'iffy' solder joints and minor repairs.





__________________________________________________________________________

CUSTOM POWER SUPPLY

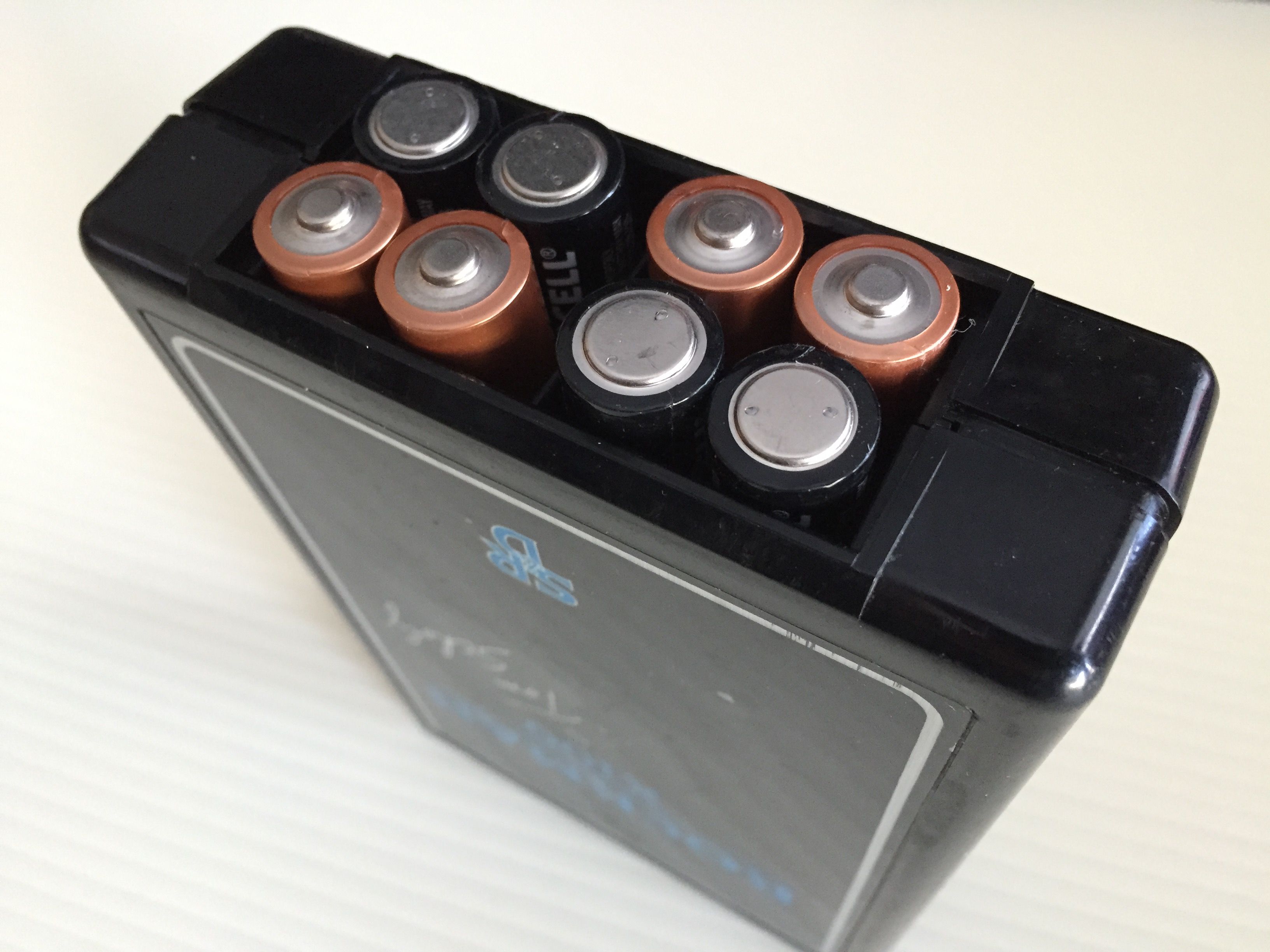

The Rockman Headphone Amps usually operate on [8] "AA" Batteries...

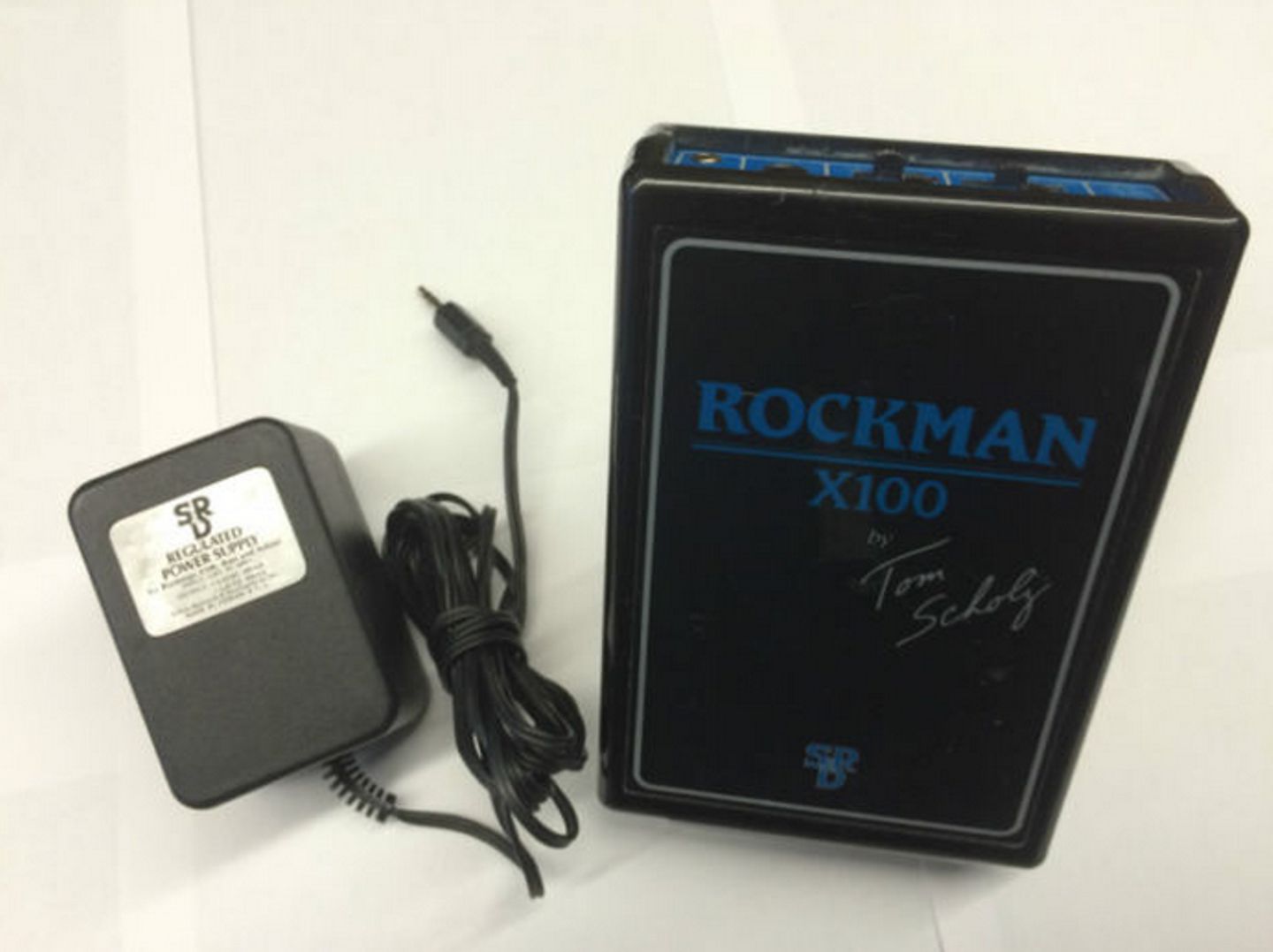

Or, a single output 2-wire 12 VAC transformer with internal +6 /-6 VDC Regulators

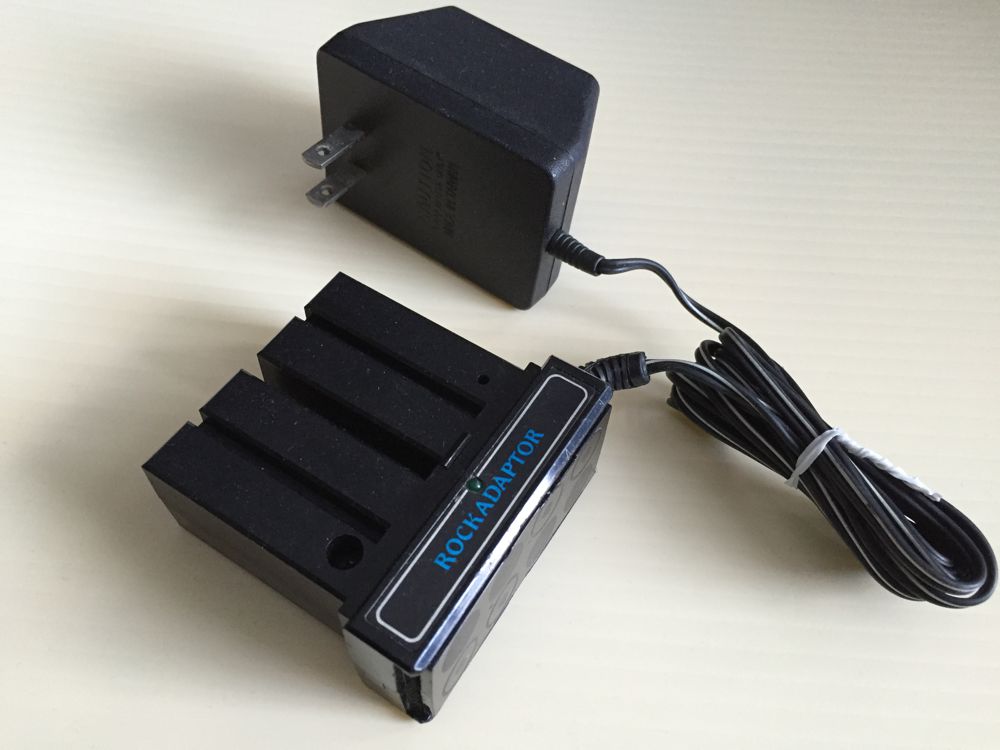

(Named ROCKADAPTER^© and plugged into the Rockman Battery compartment)





Or, a dual-rail +6VDC/ -6VDC regulated power supply with a 3.5mm STEREO JACK

The TRS jack wiring is:

T = +6VDC

R = -6VDC

S = Ground

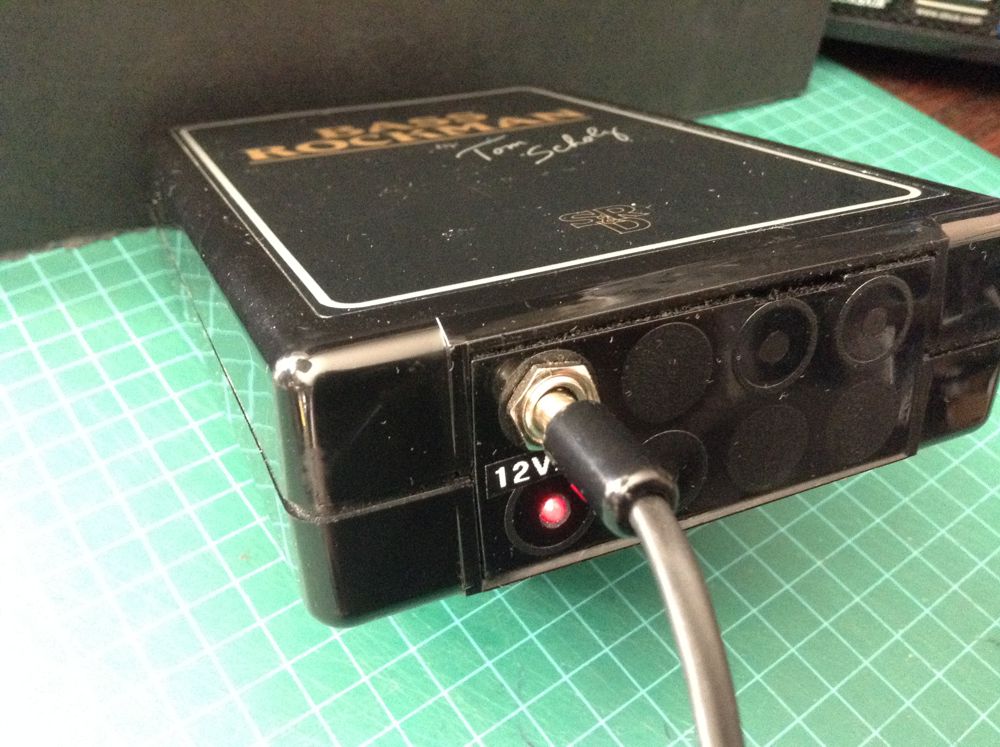

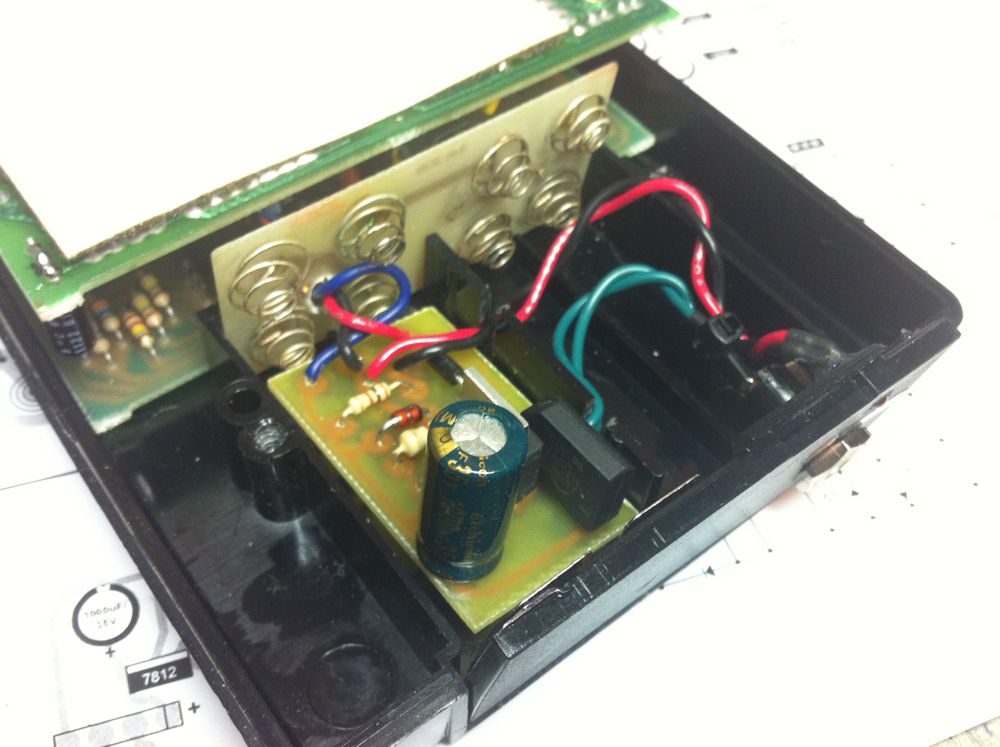

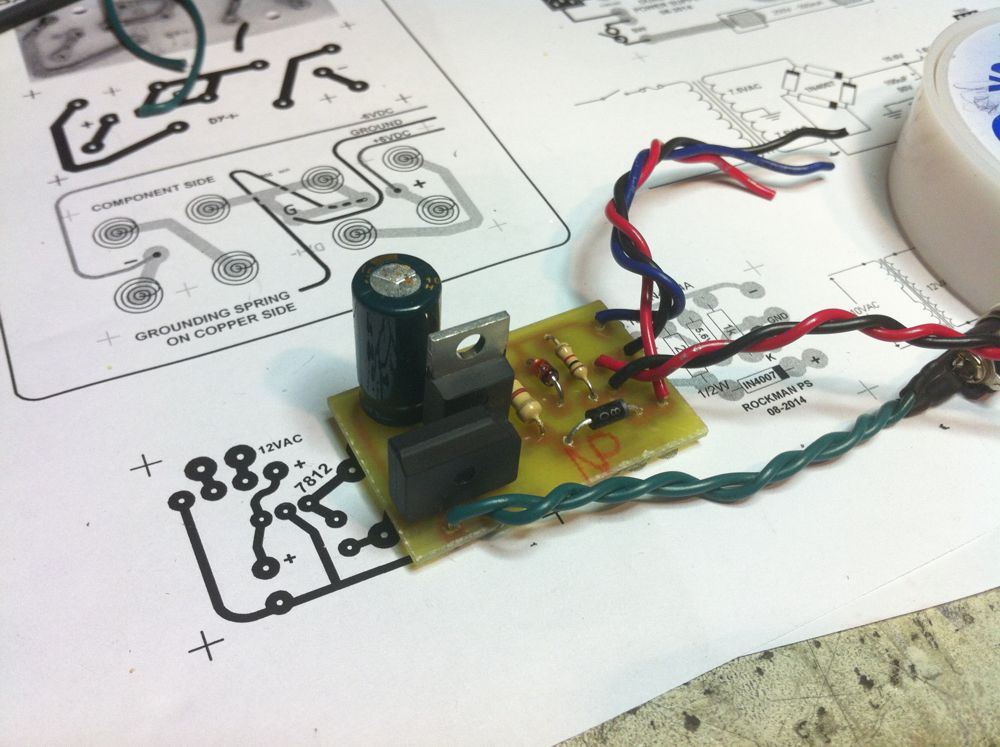

All of the ROCKMAN^© were modified with a custom made +/-6VDC Regulated power supply

mounted in the battery compartment with a 12 VAC Power Jack and red LED





__________________________________________________________________________

PACKAGING

The ROCKMAN^© MODULES were all mounted in a Small Locking-File-Box

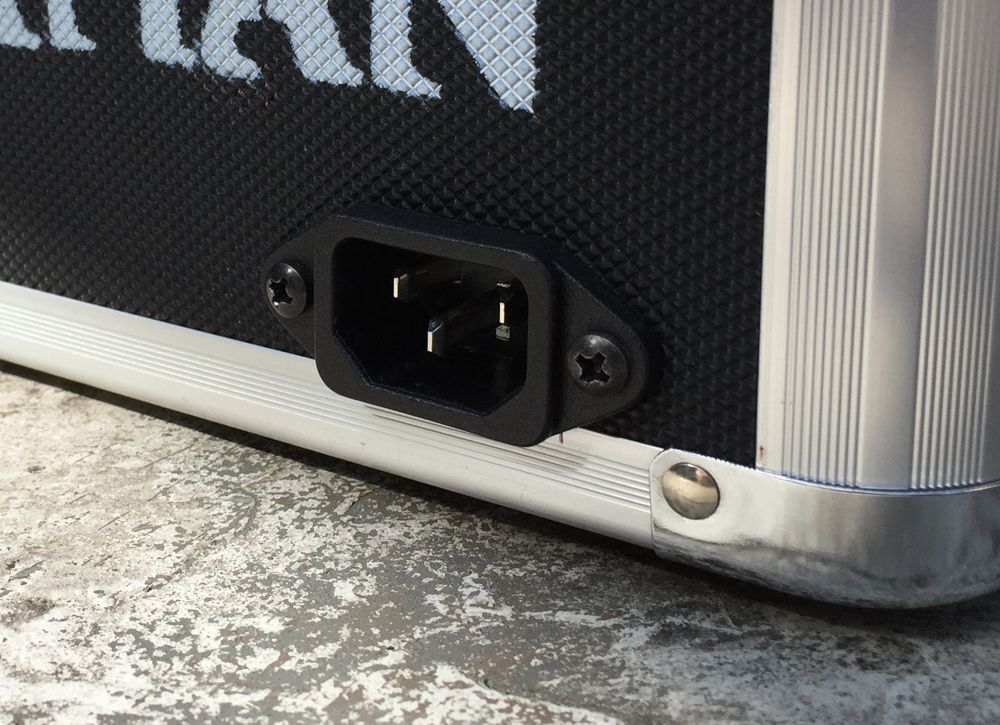

with an internal 12 VAC power Supply that is line powered via an IEC power inlet

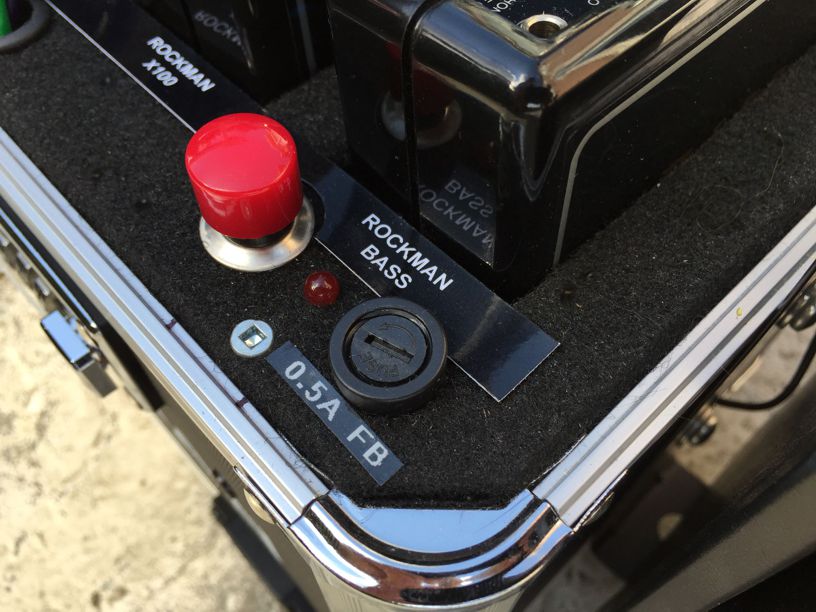

The Transformer is controlled by a Push-Button Switch and protected by a 0.5 Amp FUSE.





__________________________________________________________________________

MIXER - POWER AMP - SPEAKERS

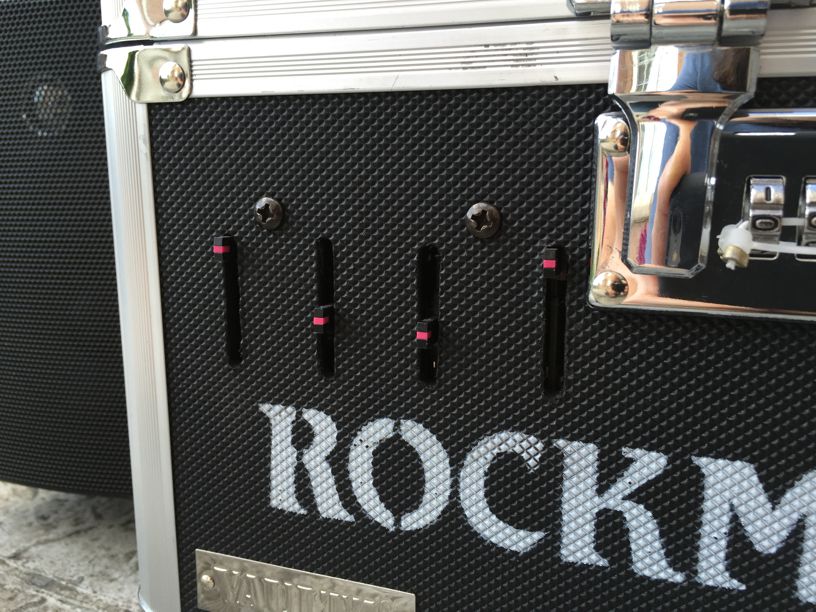

The Four ROCKMAN^© Headphone outputs feed an Internal Passive Four Channel Mixer with

Faders available on the front of the ROCKBOX



The output of the mixer feeds an internal 6 Watt + 6 Watt stereo Amplifier...

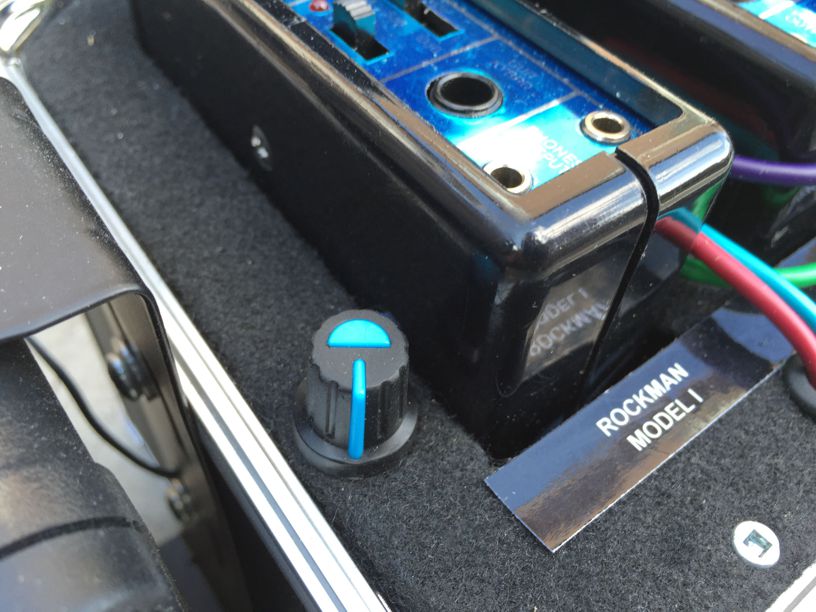

a Volume Control is avaialble on the top Panel.

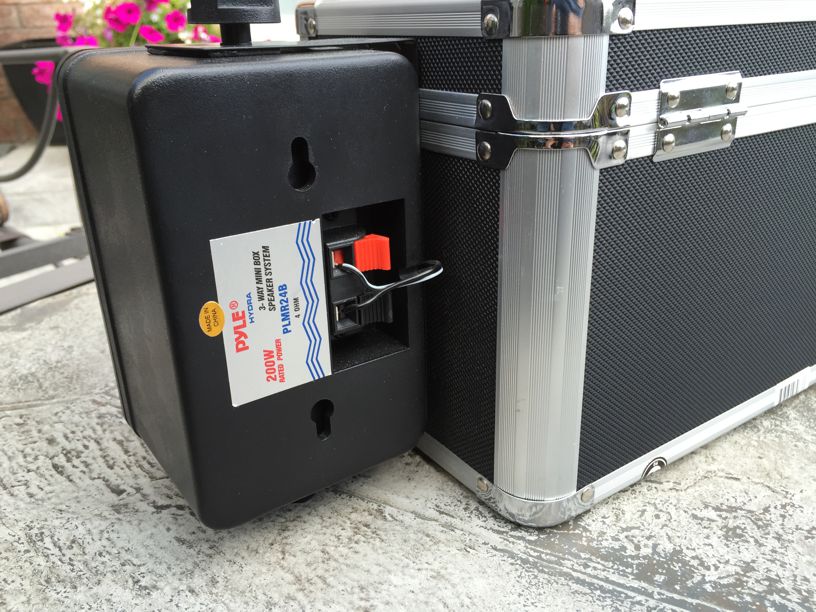

The output of the power amplifier feeds two small 4 ohm speakers mounted on either side of the ROCKBOX.

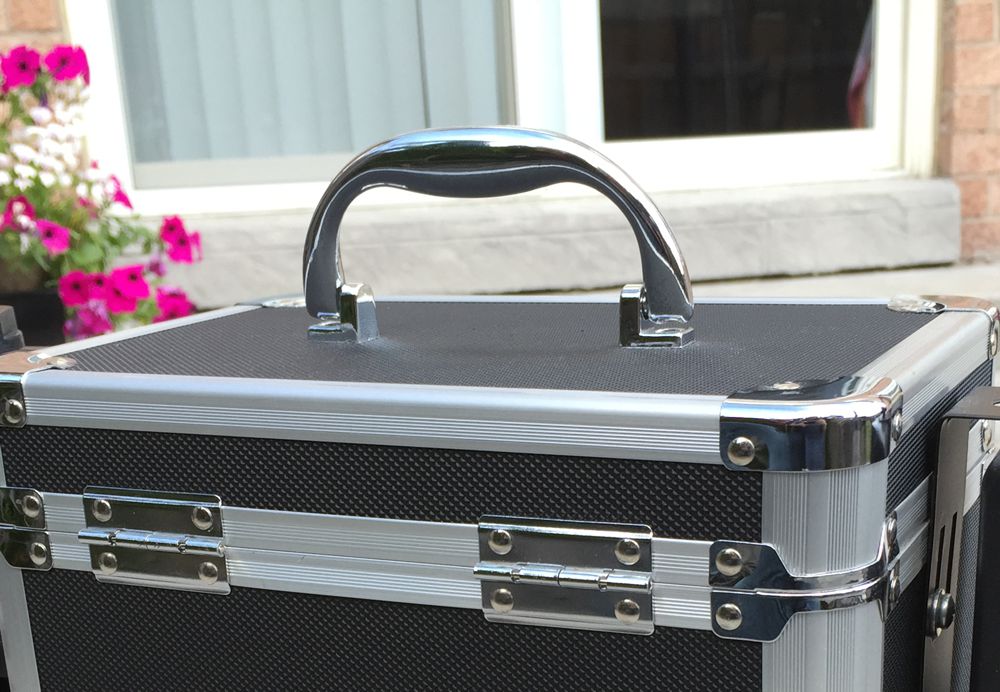

Carry Handle!!!
