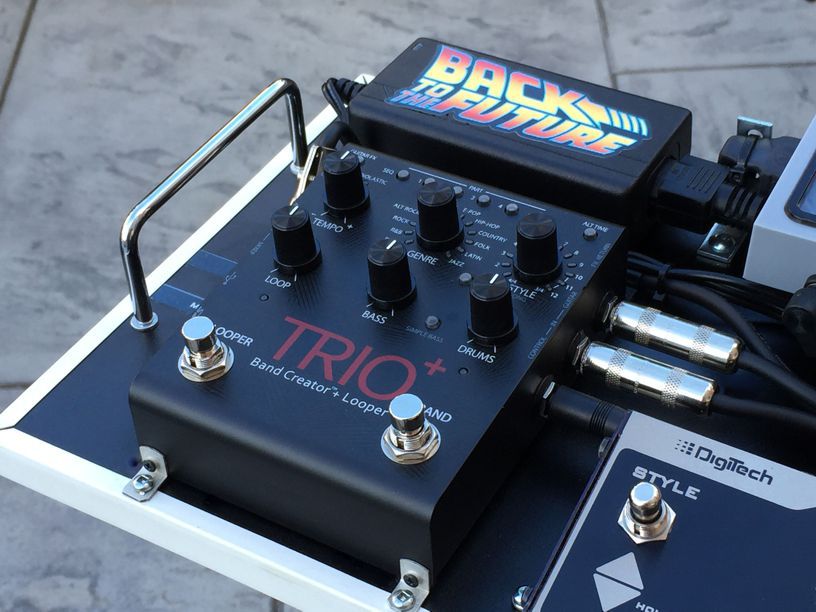

DIGITECH TRIO+

The Trio Plus is a Band Creator and Looper that allows the user to "Teach" the TRIO+ the Bass and Drums of a song, based on your gutar chord progression, and allow replay in many different Genres of music. The unit allows Tempo adjustment and individual level control for the Bass and Drums.

Once you have "Taught" the Trio and your Bass and Drum Progression is playing, you can record a Rhythm Guitar Loop and overdub a Guitar solo.

Also, the TRIO+ can have up to 5 Song parts, (i.e. Intro, Verse, Chorus, Bridge, Outtro), that can be sequenced however you like to produce a song. Up to 12 Songs can be stored on an included SD Card. Other songs can be loaded via other SD cards.

9VDC POWER SUPPLY

The Power Block is a laptop-type power brick. This particular one will supply 1700 mA at 9VDC and the Tip of the coaxial jack is Negative as required by the TRIO+.

The 9VDC output loops through the Flux Capacitor to power the Flux capacitor and pass on power to the TRIO+

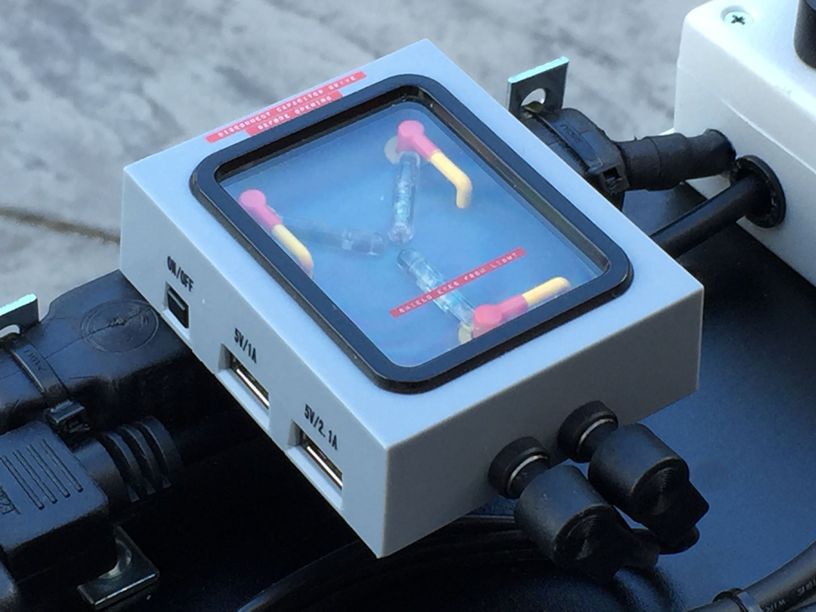

FLUX CAPACITOR

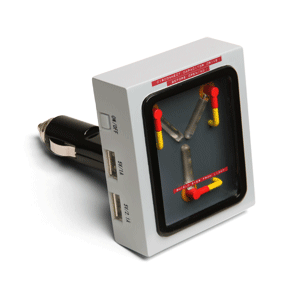

The Flux capacitor is a Novelty Item that was designed to be powered by an auto cigarette lighter socket. The 12 V Lighter plug was removed and the unit was modified to operate from 9VDC via a 2.1mm power jack. An additional 2.1mm coax power jack loops power to the TRIO+

The Flux Capacitor also has two Auxilliary USB Ports... the internal lights flash just like the real flux capacitor...

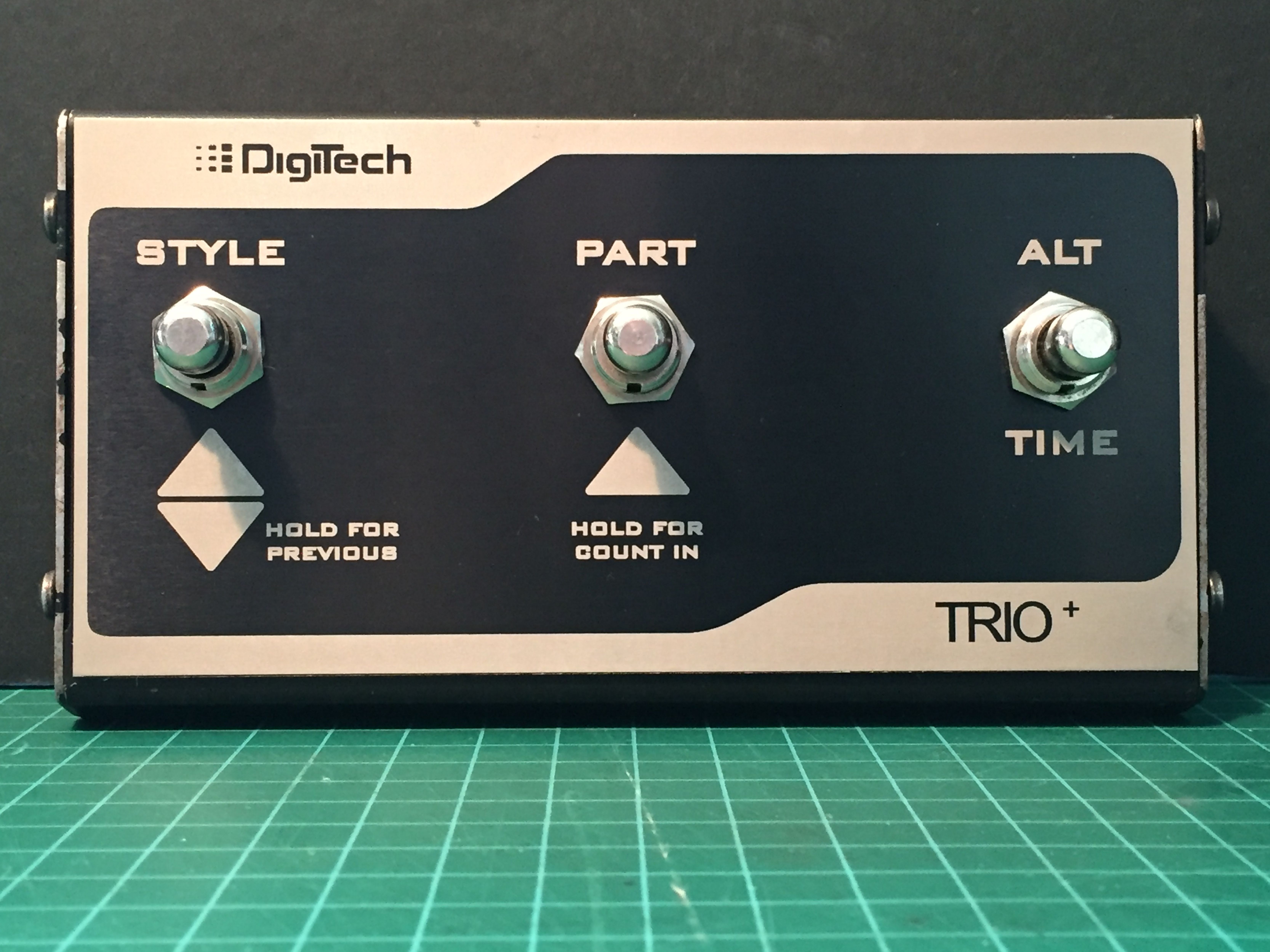

CUSTOM FS3X FOOTSWITCH

This is a stock Digitech FS3X 3-button Footswitch with a custom laser-engraved faceplate.

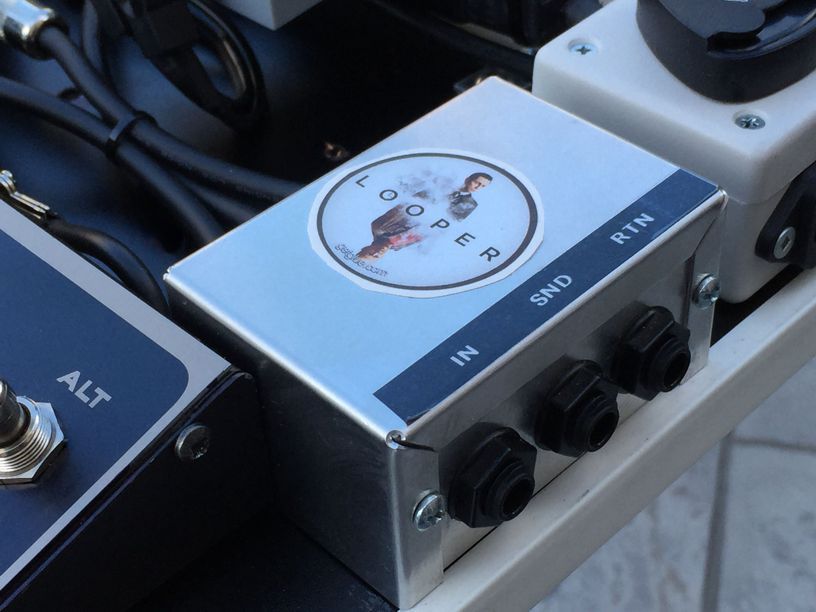

CUSTOM BREAK-OUT BOX

The Breakout Box places the TRIO+INPUT and FX LOOP IN/OUT connectors on the right-hand side. The TRIO+ FX LOOP allows you to "Teach" the band without any FX by switching the external FX in and out as required.

The Mixer and Guitar Amp Outputs are on the left hand side...

Here's a pic of the configuration...

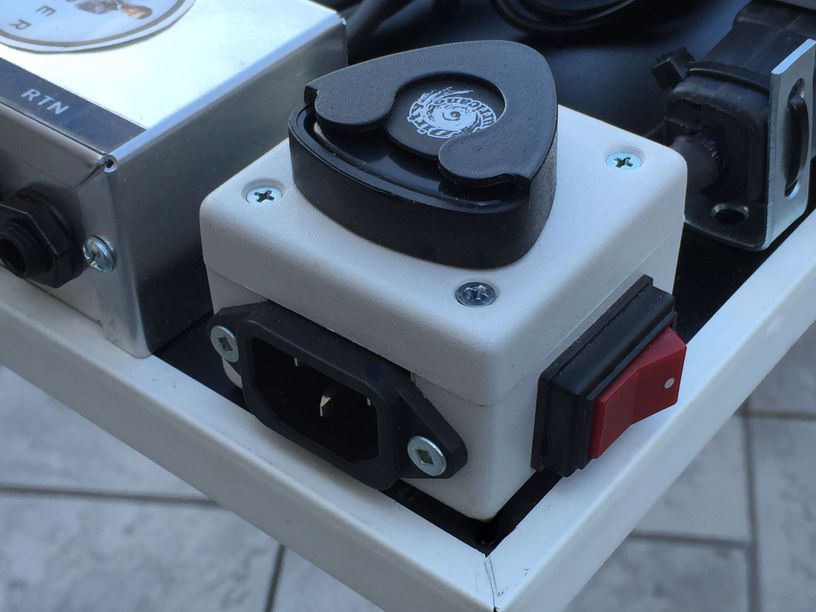

POWER CONTROL BREAK-OUT BOX

The AC Power enters the pedalboard via a custom IEC inlet and power switch which feeds 110 VAC power to the 9VDC Power Block and feeds 110 VAC power to a small power bar that allows you to plug in other items.
