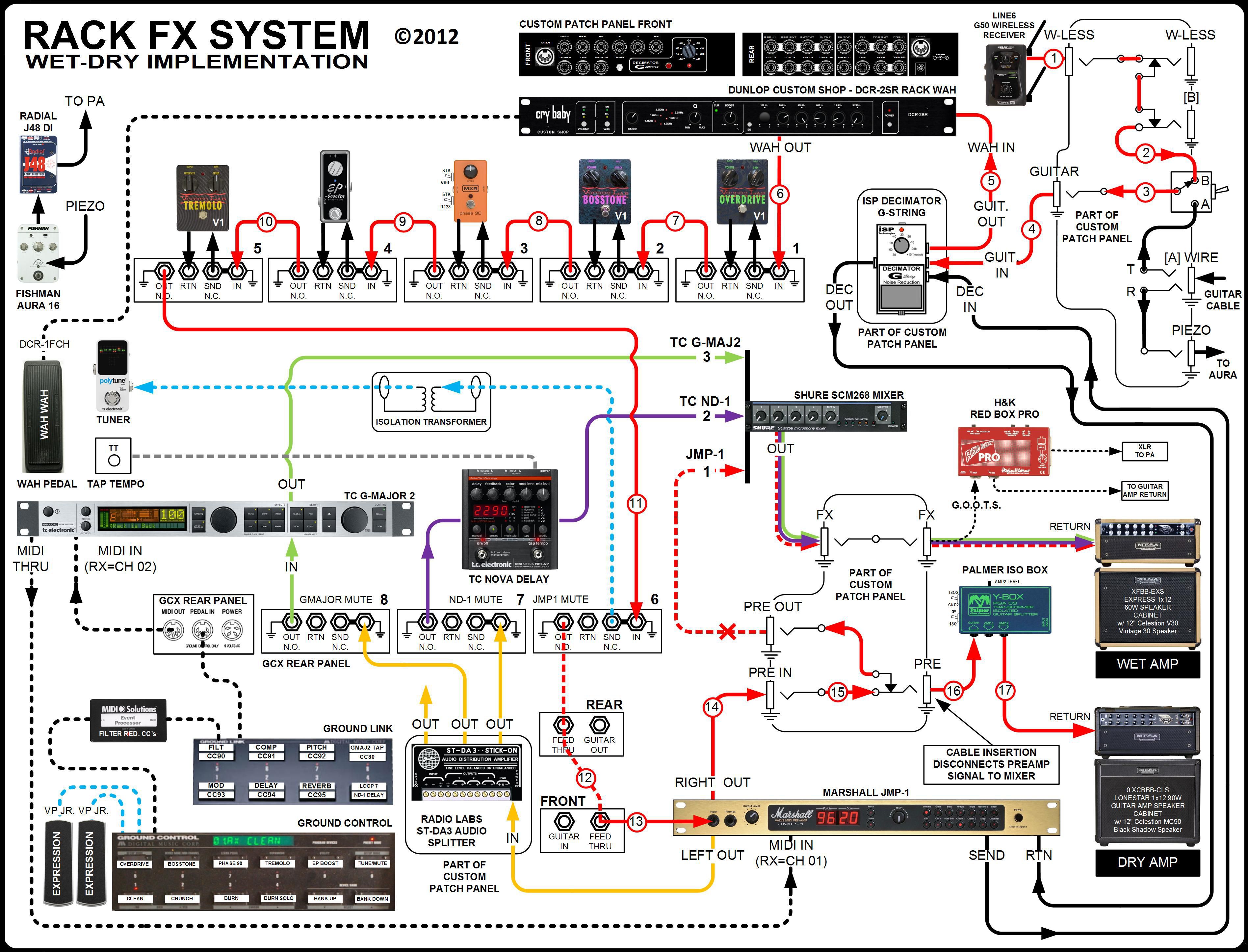

MARSHALL JMP-1 PREAMP RACK













SKB 1SKB19-8U -8 Rack Unit 19" EIA RACK CASE
SKB 1SKB-VS1 -Sliding Velcro Rack Case
SKB C3613 -LARGE CONTROLLER CASE (For Custom Pedalboard)
FURMAN PL PLUS-C POWER CONDITIONER
LINE6 RELAY G30 WIRELESS Beltpack and RECEIVER (Modified with external 2.4GHz Antennae)
MARSHALL JMP-1 MIDI CONTROLLED VALVE PREAMP (w/REAR ACCESS BACK-UP BATTERY)
DUNLOP DCR-2SR RACK WAH w/ 24 VAC Transformer
DUNLOP DCR1FC RACK WAH Foot Controller
DUNLOP DCR1FCH RACK WAH Foot Controller w/Auto Return and Auto Bypass
TC ELECTRONIC G-MAJOR 2 MULTI-EFFECTS PROCESSOR
DIG MUSIC CORP GROUND CONTROL ORIGINAL MIDI FOOT CONTROLER (V2.50)
DIG MUSIC CORP GROUND LINK EXPANDER PEDAL
DIG MUSIC CORP GCX - 8 BYPASS LOOP EXPANDER
CUSTOM PATCH PANEL WITH INTEGRATED RADIO LABS ST-DA3 AUDIO SPLITTER AND ISP DECIMATOR G-STRING NOISE GATE
TC ELECTRONIC POLYTUNE Mini TRUE BYPASS TUNER
ERNIE BALL VP JR Model 6180 (250K Ohm) VOLUME PEDAL (for Ground Control Pedal 1)
ERNIE BALL VP JR Model 6180 (250K Ohm) VOLUME PEDAL (for Ground Control Pedal 2)
CUSTOM TAP TEMPO SWITCH (For TC ND-1)
MIDI SOLUTIONS EVENT PROCESSOR - MIDI Event Processor
VOODOO LAB OVERDRIVE (Modified with LED, 3PDT FootSwitch, 2.1mm Power Jack and neoprene skid pad)
VOODOO LAB BOSSTONE (Modified with LED, 3PDT FootSwitch, 2.1mm Power Jack and neoprene skid pad)
VOODOO LAB TREMOLO V1 (Modified with LED, 3PDT FootSwitch, 2.1mm Power Jack, Swell/Pulse Switch and neoprene skid pad)
TC ELECTRONIC ND-1 NOVA DIGITAL DELAY PEDAL (Modified with [2] 1/4" Jacks for external control of ON/OFF - PRESET and TAP TEMPO)
MXR PHASE 90 PHASE SHIFTER (Modified with R28 Switch and Vibe Switch)
PALMER PGA-03 Y-BOX GUITAR SPLITTER (Modified with ground lift switch, phase reverse switch and AMP 2 Level control)
XOTIC EP BOOSTER - EchoPlex Booster Pedal
CUSTOM TUNER ISOLATION BOX (1:1 TRANSFORMER)
