IK MULTIMEDIA >AMPLITUBE< PEDALBOARD

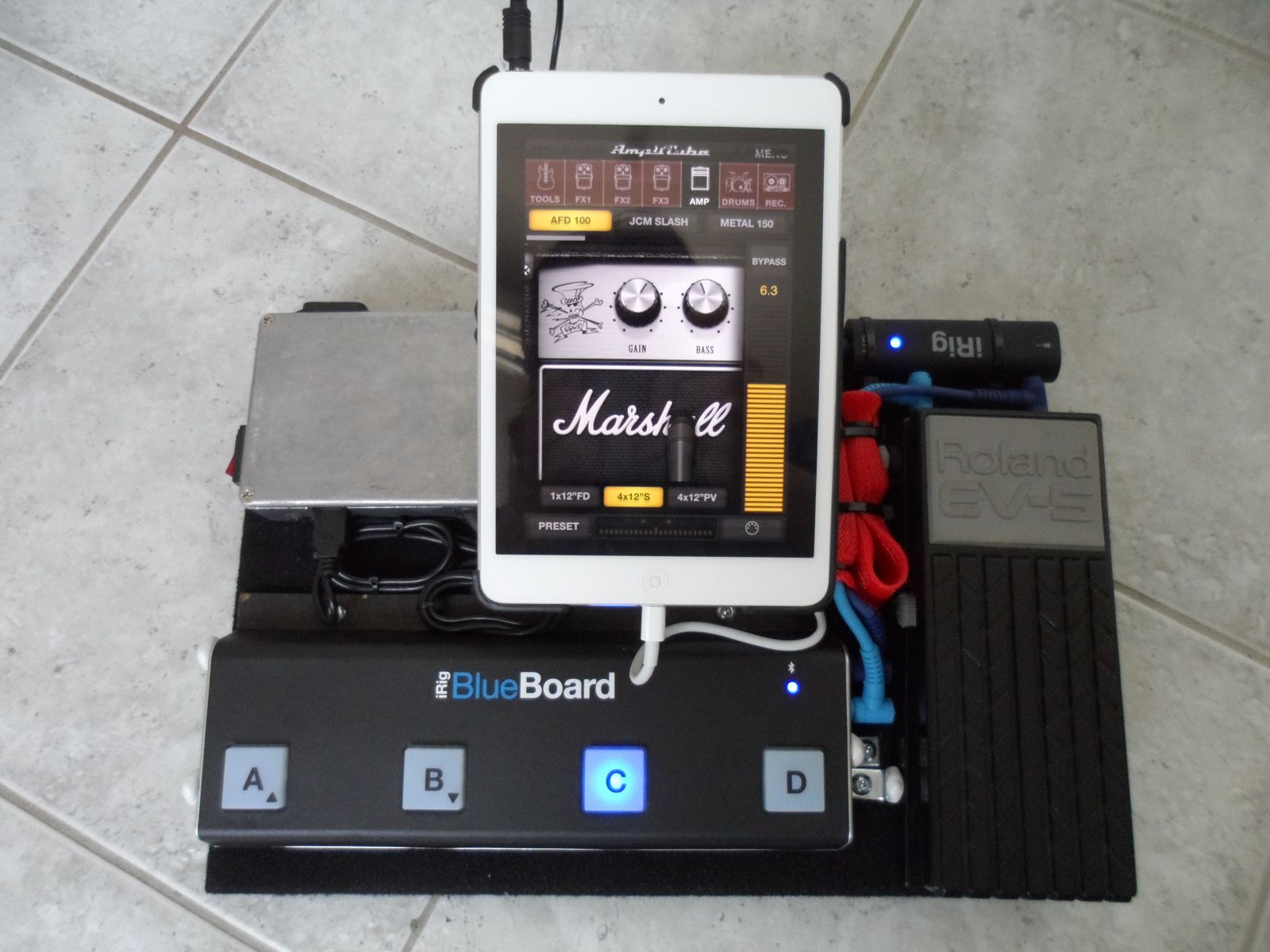

This Pedal board is designed and built to control numerous functions in the I.K. Multimedia AMPLITUBE Mobile Guitar MultiFX iOS app. The IK Multimedia© BlueBoard allows path changes in the App over a Bluetooth connection.



It houses the following...

Grifiti© iPad© MINI Stand Holder

iRig© HD Digital Guitar Interface

iRig© BlueBoard MIDI - Wireless Midi Pedalboard

Modified Roland© EV-5 Expression Pedal

Custom Power Interface box to power all components from Wall Power

Custom Audio Output Box (Stereo outputs over [2] 1/4" mono jacks or [1] 1/4" stereo jack

Miscellaneous Cables for interconnection

front

_________________________________________

Here are the Features...

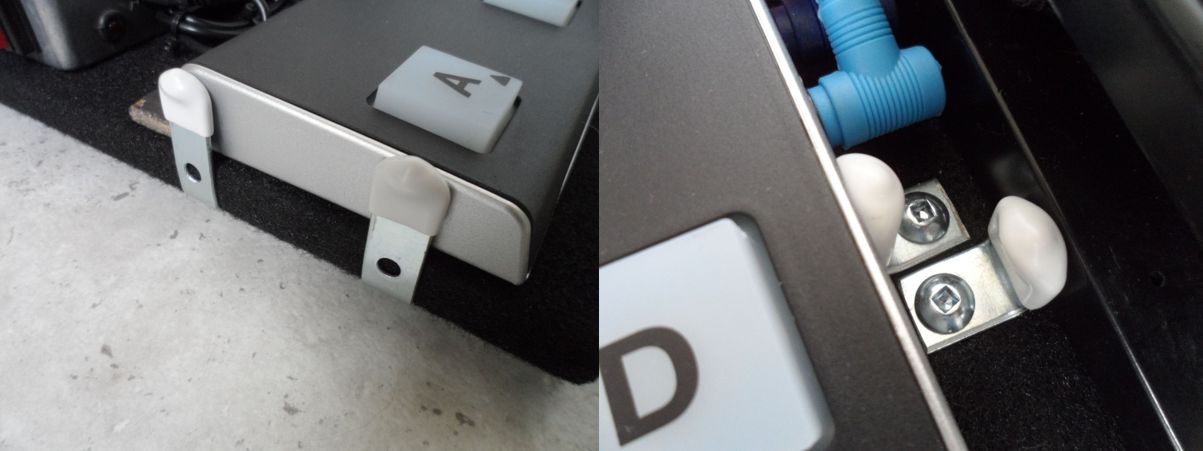

Rubber Tipped Hold-downs allow tool-less removal of all components for service or battery changing. (The iRig BlueBoard runs on "AA" Batteries that have to be changed occasionally)

clips

_________________________________________

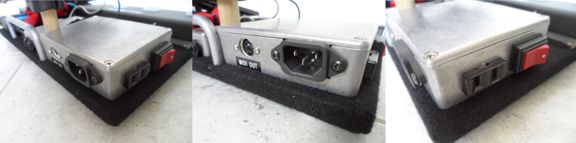

Custom Interface box for Power allows charging of the iPad through the iPad Charging cable while providing an AC Accessory outlet and Power Switch.

box

_________________________________________

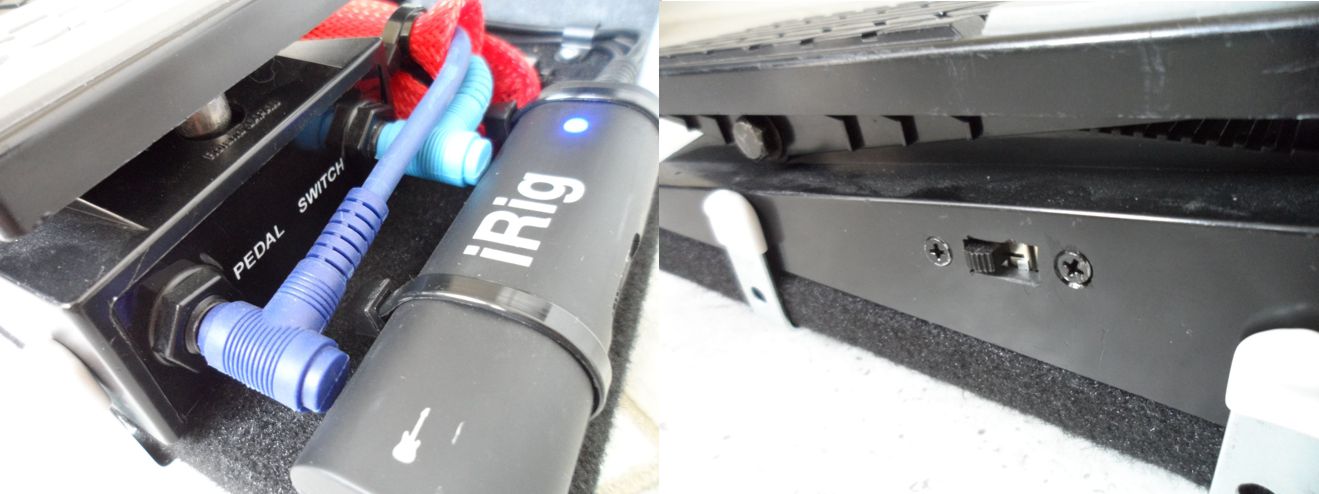

Easy Access to BlueBoard On/OFF Switch from the bottom of the pedalboard.

switch

_________________________________________

Custom Roland EV-5 with a custom pot taper and an integrated Control Switch for Wah Effect Activation. A right-hand-side slide switch switches the expression pedal polarity.

pedal

_________________________________________

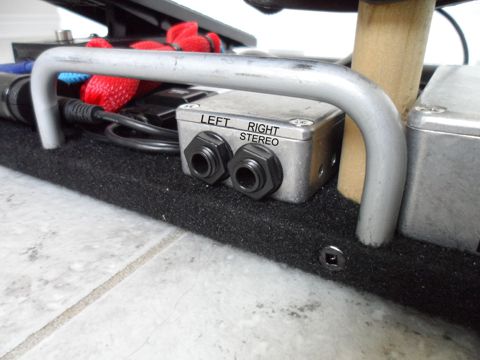

Audio Output Interface

Using 1/4" Neutrik Switching Jacks allows the following:



L/R Audio over [2] 1/4" mono jacks or

Stereo Audio over [1] 1/4" stereo jack

audio





_________________________________________
